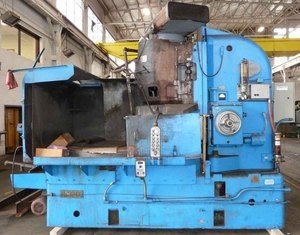

60" Diameter Magnetic Chuck (Chuck Life-TBD)
66" Swing
32" Segmented Wheel
24" Height Over Chuck
4 Table Speeds of 5.6, 8.7, 12.9, and 20.7 RPM
Power down feeds from .004" to .080" Min.
Power Raising & Lowering of grinding head
Equipped With:
New dresser arm assembly
New Auto Lubrication systems to Head and Table
New Rectifier & Chuck Control
Pendent Control
Spindle Drive Motor, 100HP, 3/60/480 Volt and Electrical Controls
Fully Re-Manufactured with Warranty-See Re-Manufactured Specifications at www.fpmiller.com
