CATALOG SPEC'S:
Capacity: 8" x 18"
Max. Height of Work Ground Under Standard Wheel: 15-1/2"
Standard Wheel Size: 7" OD x 1/4" Hole
Spindle Motor: 1-1/2 HP
Spindle Speeds: 3450 RPM
Table Working Surface: 8" x 18"
Longitudinal Table Travel: 22"
Cross Travel: 9"
Vertical Adjustment: 15-3/4"
Dimensions: 66" x 59" x 75"H
Approx. Weight: 2520 lbs.
Electrics: 480/3/60
2 Axis Acu-Rite III DRO
O.S. Walker Magnetic Chuck Control

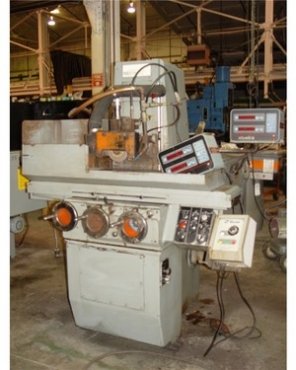

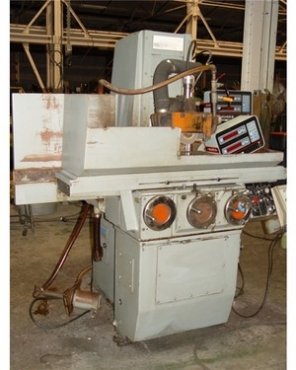

(2) Machines Available
One Rebuilt by Micro-Precision Inc. of RI
