Stock-No. 1124-0002041

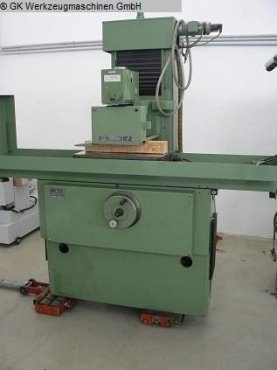

Type of machine Surface Grinding Machine
Make ELB
Type SWH 5 ND
Year of manufacture 1983
Type of control conventional
Storage location Stockstadt a. Rhein
Country of origin germany
Delivery time shortly
Freight basis ex Stockstadt, free loaded on
Technical details:
grinding length 500 mm
grinding width 250 mm
workpiece height 275 mm
Dimensions (LxWxH) 1800x1450x2200 mm
weight of the machine ca. 1450 kg
table speeds 2-28 m/min
cross travel 230 mm
rapid traverse cross 1200 mm/min
cross feed autom. 1-25 mm/Hub
rapid traverse vertical 0,15 m/min
grinding wheel speeds 1400/2800 U/min
grinding spindle drive 1,4 kW
total power requirement 6 kW
