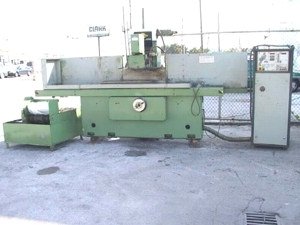

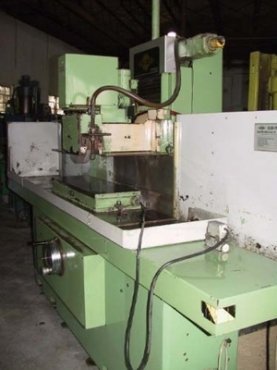

3 axis automatic, auto dresser,
coolant w/paper filtration, 12"
X 36" electromagnetic chuck

SPECIFICATIONS:
Capacity 15" x 36" (375mm x 900mm)
Max. distance table to spindle center 21" (525mm)
Grinding spindle motor drive 5/6 HP
Grinding wheel capacity 12" x 2" x 3"
Maximum hyd. longitudinal travel 14" (350mm)
Longitudinal feed speed 3 to 100 FPM (1 to 30 m/min)
Maximum hydrualic cross travel 14" (350mm)
Rapid traverse positioning of wheel 48 IPM (1200mm/min)
Rotation of fine setting button 0.012" (0.3mm)
Rotation of handwheel 0.04" (1mm)
Cross feed per stroke 0.12" to 2" (3 to 50mm)
Vertical feed rate 0.08" to 7"/min (2 to 180mm/min)
Infeed amount 0.00004" to 2" variable
Dimensions (L x W x H) 82" x 75" x 80"
Electrics 230/460/3/60Hz
Weight, Net 9,900 lbs.

EQUIPPED WITH:

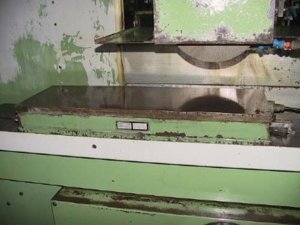

12" x 36" electro magnetic chuck with controller
Coolant system with paper filter separator
Automatic wheel dressing control
Automatic downfeed
