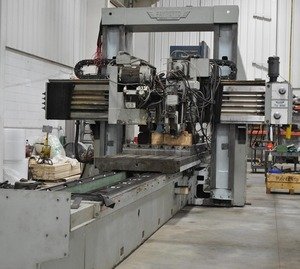

(1) USED FAVRETTO MODEL TU500 BRIDGE STYLE SURFACE AND WAY GRINDER
Serial Number: 1076 New: 1977
Equipped with (1) Horizontal Spindle and (1) Vertical Swiveling Spindle
Capacity:
Max. grinding length: 196”
Max. grinding width: 59”
Max. grinding height: 49” over table
Distance between columns: 59.8”
Table size: 47” X 196”
Max. table travel: 207”
Hydraulic table feeds from 79 to 1185 IPM
Horizontal grinding spindle:
Wheel size: 20” dia. X 5” w
Motor: 20 HP
Vertical/swiveling grinding spindle
Wheel size: 15” dia. Flat
Motor: 10 HP
Machine equipped with:
Incremental downfeed
Electric magnetic chuck: 42” X 146”, T-slotted, 7” between slots
Coolant system
Dressers to each wheel
Floor space required: 488” X 200”
Height: 155”
Est. weight: 72,000# without chucks
