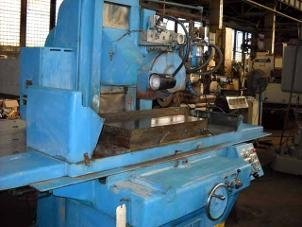

GALLMEYER & LIVINGSTON MODEL 570 HYDRAULIC FEED GRINDER

S/N: 570-221; Capacity: 16" x 18" x 36"; Hydraulic Table Travel, Longitudinal (Max): 47.5"; Hydraulic Table Travel, Traverse (Max): 17.75"; Grinding Length Maximum: 37"; Size of Wheel: 14"x1.5"x 5"; Distance Wheel to Table, Maximum: 21"; Maximum Longitudinal Speed: 100 FPM; Continuous Cross Speed (Maximum): 120 IPM; Step Cross Travel (Maximum): .75"; Approx Dimensions: 171" x111" x102"H; Approx. Weight: 9,600 lbs; Equipped With: Motor Driven With 7.5 HP, 3 Phase, AC Spindle Drive Motor; 3 HP, 3 Phase, 60 Cycle AC Motor For Hydraulic Pump; Rapid Vertical Wheel Head Travel And Coolant System; With Electrical Control Cabinet And Operators Master Control Station. Incremental Downfeed; 16"X36" Electro-Magnetic Chuck; Over-The-Wheel Dresser; Plunge Cycle; Handwheel Table Feed Control; Power Rapid Vertical Wheel Head Travel. Automatic Lubrication; Free Standing MD Coolant System
