Description:
24"x96" table, reconditioned
Specifications:
GALLMEYER & LIVINGSTON SURFACE GRINDER
Serial no. 602496
Model F
Working surface of table24" x 96"
Automatic traverse of head24"
Vertical movement of wheel head30"
Maximum distance under 20" wheel25"
Wheel size20" x 6" x 12" C/B
Spindle motor30 hp, 1160 rpm
Hydraulic motor20 hp, 1160 rpm
Coolant motor1/4 hp, 1725 rpm
Vertical head motor3/4 hp, 1725 rpm
Neutrifier Model 2T1
Coolant separation tank Yes
Approximate weight28,000 lbs.
Comments: This is an older (mid - 40's) grinder which we purchased from a local grinding shop. Originally this company used this grinder to sharpen shear blades, but several years ago they purchased a knife grinder and two years ago purchased another grinding shop which had an even larger knife grinder, consequently this grinder became surplus and was not used.

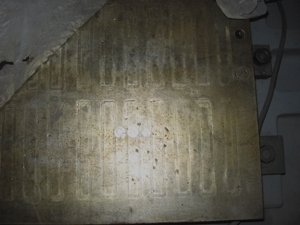

We have reconditioned this grinder. Major items as follows: We found six weak spots in the magnetic chuck and it has been disassembled, cleaned, rewound, sealed and repaired. The spindle bearings have been replaced. The ways had some scoring which has been filled and flecked. The hydraulic cylinder which strokes the table has been rebuilt and the tank and valve body cleaned and rebuilt. Finally, the machine has been cleaned, painted and cycled.
The G&L company has been purchased by the Lelland-Gifford Company (drill presses) and can be reached at: BUS: 330-794-1960, FAX: 330-794-9912, 1497 Exiter Drive,, Akron, Ohio, 44306, Attn: Bob Hartford.
Weight:
28,000
