Description:

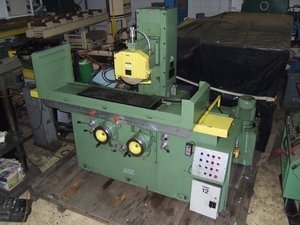

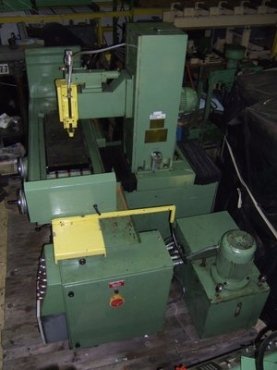

GMP 12" x 39" Hydraulic Surface Grinder

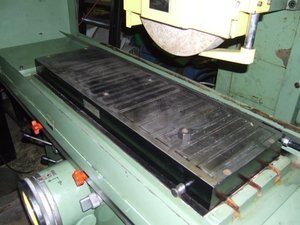

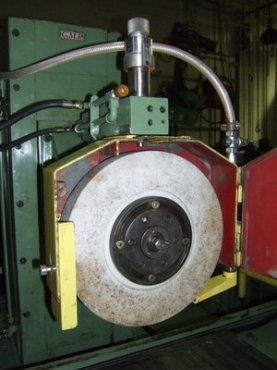

Model N-SG-1000/400,Table area 13.75" x 39", 12" x 39" Magnetic chuck, 14" x 2" Grinding wheel, Dial in dressing attachment, 16" Max vertical capacity, Table travel 40" Longitudinal - 16" Cross, 0 to 100 fpm feed range of table travel, 0 to 3/4" (increments) feed range of cross travel, 40 gal hydraulic tank, 25 gal coolant tank, W/ Electrics/Hydraulics diagrams & parts manual, Hydraulic pump motor 7.5hp 230/460v 3ph, Spindle drive motor 5.5hp 230/460v 3ph, Coolant pump motor .018hp 230/460v 3ph,
Specifications:
GMP 12" x 39" Hydraulic Surface Grinder
Model N-SG-1000/400, Table area 13.75" x 39", 12" x 39" Magnetic chuck, 14" x 2" Grinding wheel, Dial in dressing attachment, 16" Max vertical capacity, Table travel 40" Longitudinal - 16" Cross, 0 to 100 fpm feed range of table travel, 0 to 3/4" (increments) feed range of cross travel, 40 gal hydraulic tank, 25 gal coolant tank, W/ Electrics/Hydraulics diagrams & parts manual, Hydraulic pump motor 7.5hp 230/460v 3ph, Spindle drive motor 5.5hp 230/460v 3ph, Coolant pump motor .018hp 230/460v 3ph,
Dimensions:
9x6x8
Weight:
8000lbs
