Description:
20" ICHIKWA, 20" Mag Chuck, 10" Max under wheel, 12" Wheel, 10 HP Motor.
Specifications:

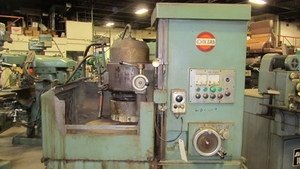

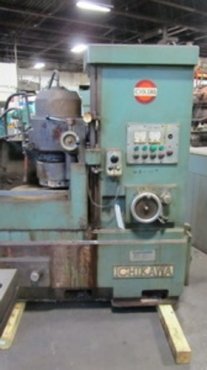

20" ICHIKWA Precision Vertical Rotary Surface Grinder
Model: ICB-603
S/N: 030151
Year: 1967
Condition: Good
Specifications:
Magnetic Chuck Diameter : 20",,
Grinding Wheel Size : 12",,
Maximum Distance Under The Wheel : 10",,
Swing Inside Guards : 28",,
Chuck Speeds : 3-30 RPM,,
Infinitely Variable Power Downfeed : 0.0001" to .002",,
Motor : 10 HP 220/440/3,,
Dimensions : 70" x 65" x 72" H,,
Weight : 4500 LB,,
Equipped With:
Electromagnetic Chuck with Nutrol.
Coolant System.
Load Meters.
Power Down Feed.
Wheelhead Rapid Raise/ Lower .
One Shot Lube..
Dimensions:
70" x 65" x 72"
