KENT, KGS-410AHD, SURFACE, GRINDERS
  • Condition:Used
  • Category:GRINDERS
  • Type:SURFACE
  • Manufacturer:KENT
  • Model:KGS-410AHD
  • YOM:1985
  • Location:United States, Chicago
  • Price:On request
  • Stock No:-
  • Control:Manual
  • ID:AS1103
Description:

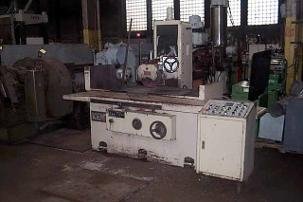

Kent Model KGS-410AHD Hydraulic Surface Grinder
Specifications:
S/N: 850157-2; Working Surface of Table: 16" x 41.75"; Table Travel - Longitudinal: 44.5"; Table Speed: 13' - 73'/Min.; Table Travel - Cross: 17-11/16"; Crossfeed - Per Table Reversal: 0.02"-0.5"; Crossfeed - -Rapid Traverse: 60 IPM; Maximum Distance Under New Wheel to Table: 23"; Powered Incremental Downfeed: 0.0002"-0.0016"; Grinding Wheel Size; 12"x1.5"x5"; Grinding Wheel Speed: 1740 RPM; Grinding Wheel Motor: 5 HP 3/60; Approximate Overall Dimensions: 120"LRx 84"FBx84" H; Approximate Weight 9500 lbs; Equipped With: Movable Column for Cross Feed; Separate Electronic Control Console; Electronic Programmable Automatic Incremental Downfeed w/ Digital Readout for Vertical Axis; Sparkout (1 - 9 Passes) w/ Automatic Wheel Retraction; Power Rapid Wheelhead Positioning; Hydraulic Table Traverse. Power Crossfeed; 15-7/8"x39-1/2" Electro-Magnetic Chuck; Coolant System; Meehanite Casting; External Hydraulic System
Dealer name:
Apex Auctions United States, Warrenville
