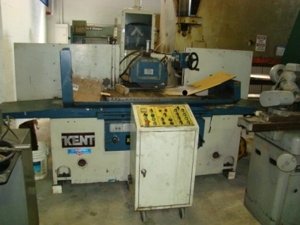

20" x 40", KENT, KGS510AHD, 3X auto., EMC, coolant/filter, 1996
width" 20 " length" 40 "

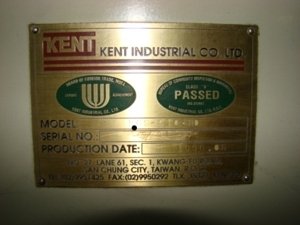

MANUFCTR KENT Model KGS510AHD
Specifications:
Model number KGS-510AHD
Year of manufacture 1996
SPECIFICATIONS:
Longitudinal table travel (max) 44 3/4"
Crossfeed table travel (max) 21 1/4"
Table size 39-3/8" x 19-3/4"
Maximum distance to center of table 23"
Wheel speed 1740 rpm

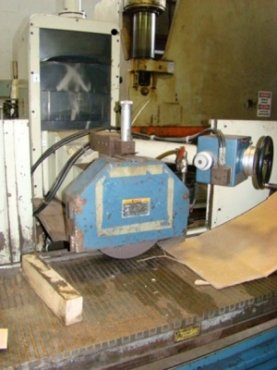

Grinding wheel (D x W x B) 14" x 1.5" X 5"
Table load including magnetic chuck 2,200 lbs
Table speed, infinitely variable 13 - 70 FPM
Power cross feed of tavel 60" min
Automatic transverse increment 0.2" to 0.5"
Automatic increment dowfeed--range 6 steps .0002" to 0.0016"
Micro feed, vertical .0001"
Vertical handwheel/div .0005"
Vertical handwheel/revolution .02"
Electrics 575/3/60
Spindle motor 5 HP

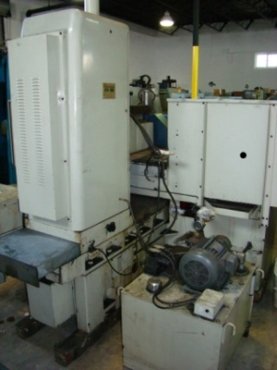

Hydraulic pump motor 3 HP
Cross feed motor 1/4 HP
Power elevation motor 1/2 HP
Coolant pump motor 1/8 HP
Floor Space 175" X 83" X 94 1/2" H
Net weight, approximate 11,000 lbs.
EQUIPPED WITH:
KANETSU 20" x 40" electro magnetic chuck and control

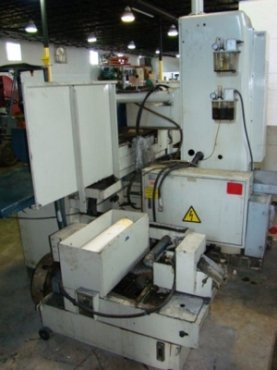

Coolant system with paper filter
Over the wheel dresser, Automatic lubrication system
