12" x 24", NICCO, #NSG-6H, 3X auto. w/IDF, EMC, coolant/filter, 1992

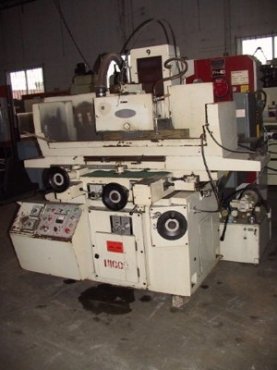

NICCO 12" x 24" Surface Grinder with Automatic Incremental Downfeed, combination dust, over the wheel dresser, suction,coolant system
Specifications:
Model number NSG-6H
Year of manufacture 1992
SPECIFICATIONS:
Longitudinal table travel (max) 27"
Crossfeed table travel (max) 13"
Table size 12" x 24"
Height without chuck 20"
Maximum weight of work piece 990 lbs
Wheel speed 1700 rpm
Grinding wheel (D x W x B) 14" x 1-1/2" x 3"
Spindle motor 5 HP
Table speed, infinitely variable 3.3 to 82 fpm
Range of intermittent crossfeed 0.12" to 0.8" per cycle
Speed range of continuous crossfeed 6.6 to 16.4 fpm
Crossfeed handwheel--one revolusion 0.125"
--one division 0.0005"
Power vertical feed 14 ipm
Vertical feed handwheel--one revolusion 0.04"
--one division 0.0001"
Range of automatic down infeed 0.000" to 0.0016" per cycle
Electrics 440/3/60
Net weight, approximate 4,686 lbs.
Dimensions (L x W x H) 109" x 79" x 74"
EQUIPPED WITH:
Eelctromagnetic chuck with controller
Combination dust suction & coolant system
Power vertical feed, Automatic incremental downfeed
Hydraulic over-the-wheel dresser with diamond
Set of leveling pads
