Description:

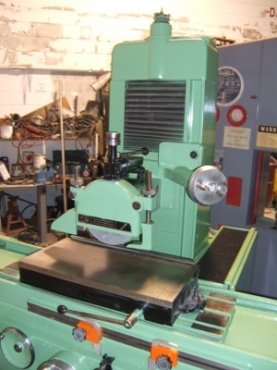

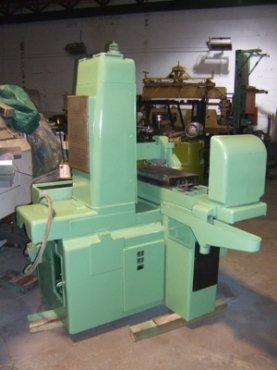

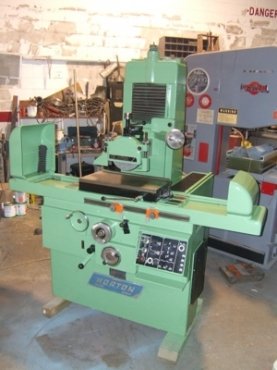

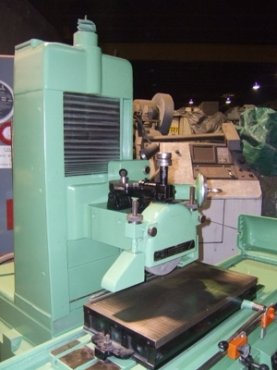

Norton 12" x 24" Surface Grinder

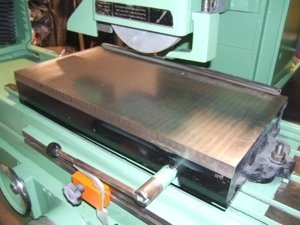

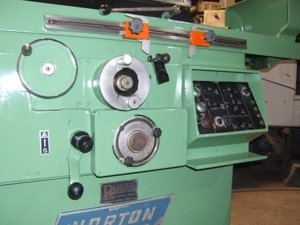

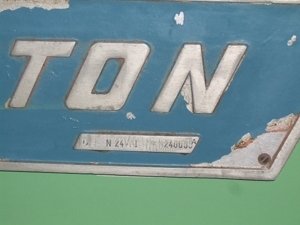

Model N24VA1, S# N240063A, 12" x 24" Magnetic manual chuck, 9.5" x 1" Grinding wheel, Dial in truing, Fully auto incremental adjustable down feed, Dial in hand lever speed traverse, Hand dial adjustable feed 0-6-L/0-9-R with adjustable stops, Built in hydraulic pump, Size overall 65"FB x 79"W x 84"H, Est. Wt. 5,500 lbs, Made in Germany, Cleaned & painted
Specifications:
JM Montgomery 6' x 16ga Plate Roll
Model 7216, S#06169-1, Capacity 72" x 16ga, 3 Rolls power driven, Manual ratchet adjustments on bottom 2 rolls front/back on both ends, Grooves on all 3 rolls 1/4" - 3/8" - 1/2", Top roll Quick open drop end manual adj., Pendant control For/Rev, Connected gear reducer chain drive, Grease zerks bank on drive end, All welded steel frame construction, Solid steel rolls, 2hp 230/440v 3ph 6.8/3.4amps 60hz, Overall Dim. on skid 12'L x 2' 11"W x 3' 11"H - off skid 11' 5"L x 2' 9"W x 3' 6"H, Est. Wt. on skid 2,000 lbs. - off skid 1,800 lbs. "Cleaned & Painted"
Dimensions:
79"x65"x84"
Weight:
5500
