OKAMOTO, ACC 450, SURFACE, GRINDERS
  • Condition:Used
  • Category:GRINDERS
  • Type:SURFACE
  • Manufacturer:OKAMOTO
  • Model:ACC 450
  • YOM:2021
  • Location:Netherlands, BABBERICH
  • Price:On request
  • Stock No:7528
  • Control:NC
  • ID:AS29449
Description:

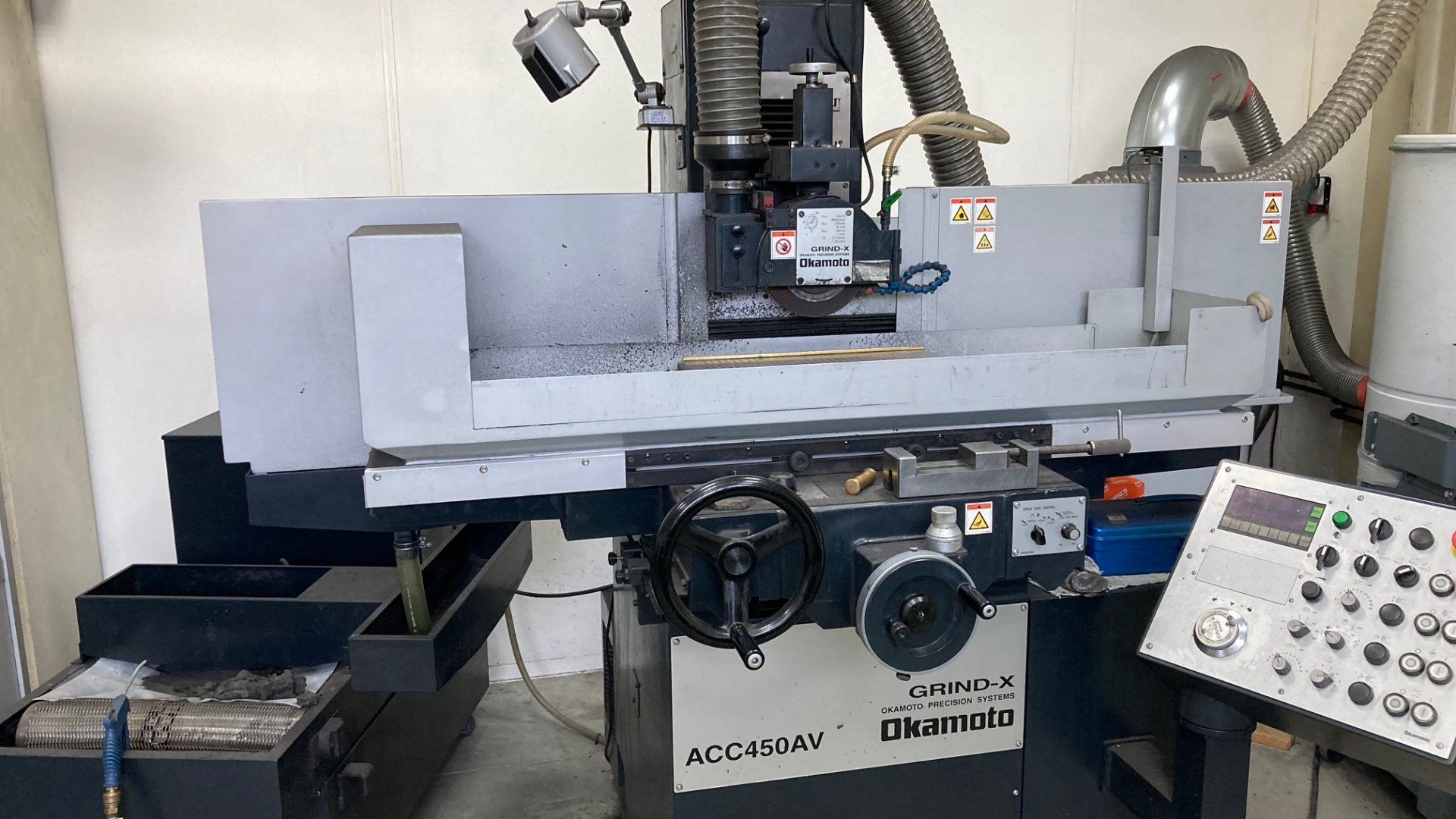

Surface grinder
OKAMOTO - ACC 450 AV
X - Travel: 530mm
Y - Travel: 165mm
Z - Travel: 390mm
Table Length: 450mm
Table Width: 150mm
Table load: 120
Feed rate X-Axis: 20000mm/min.
Feed rate Z-Axis: 400mm/min.
Grinding stone dimensions:205 x 19 x 31,75mm
Speeds: 3000Rpm
Feed rate Y-Axis: 400mm/min.

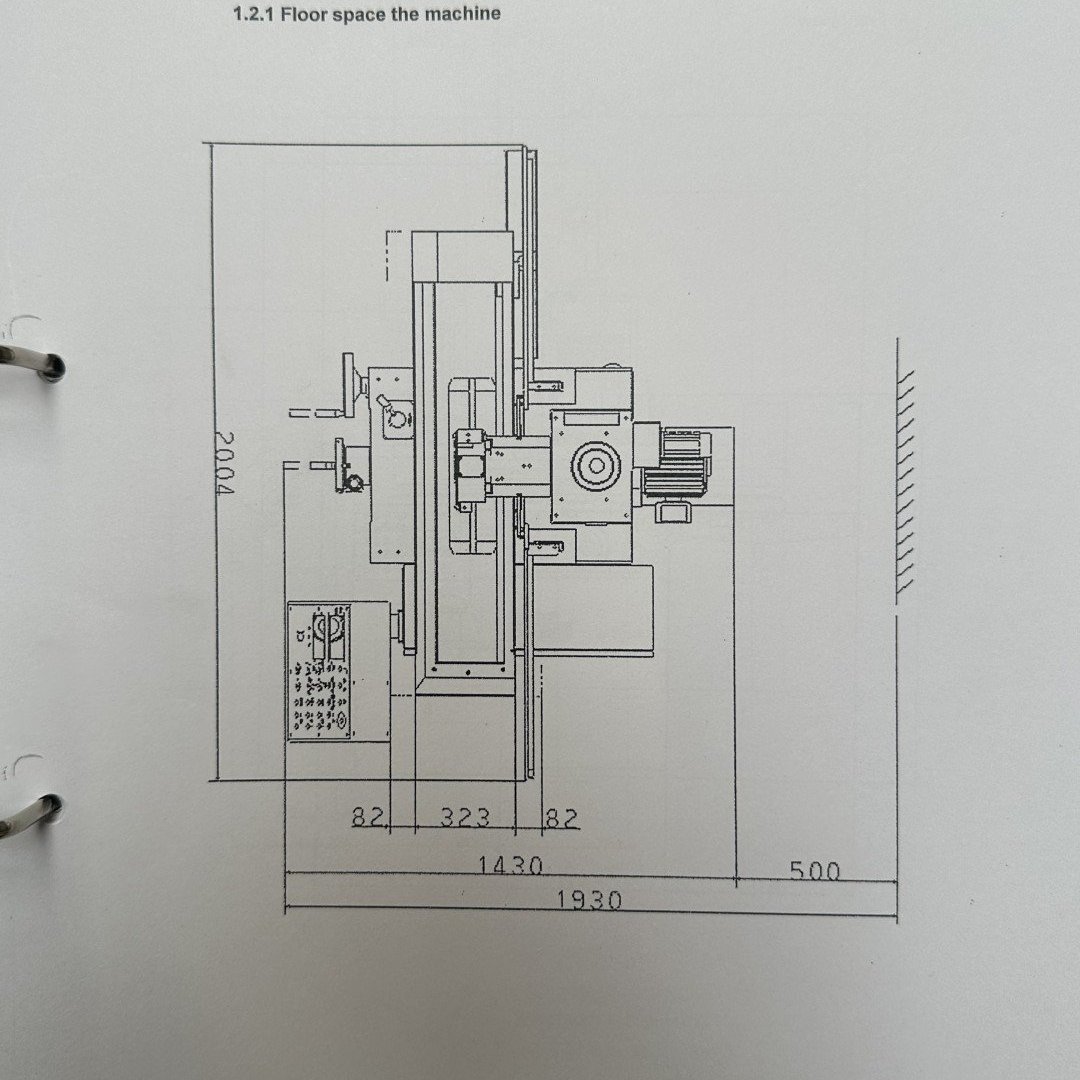

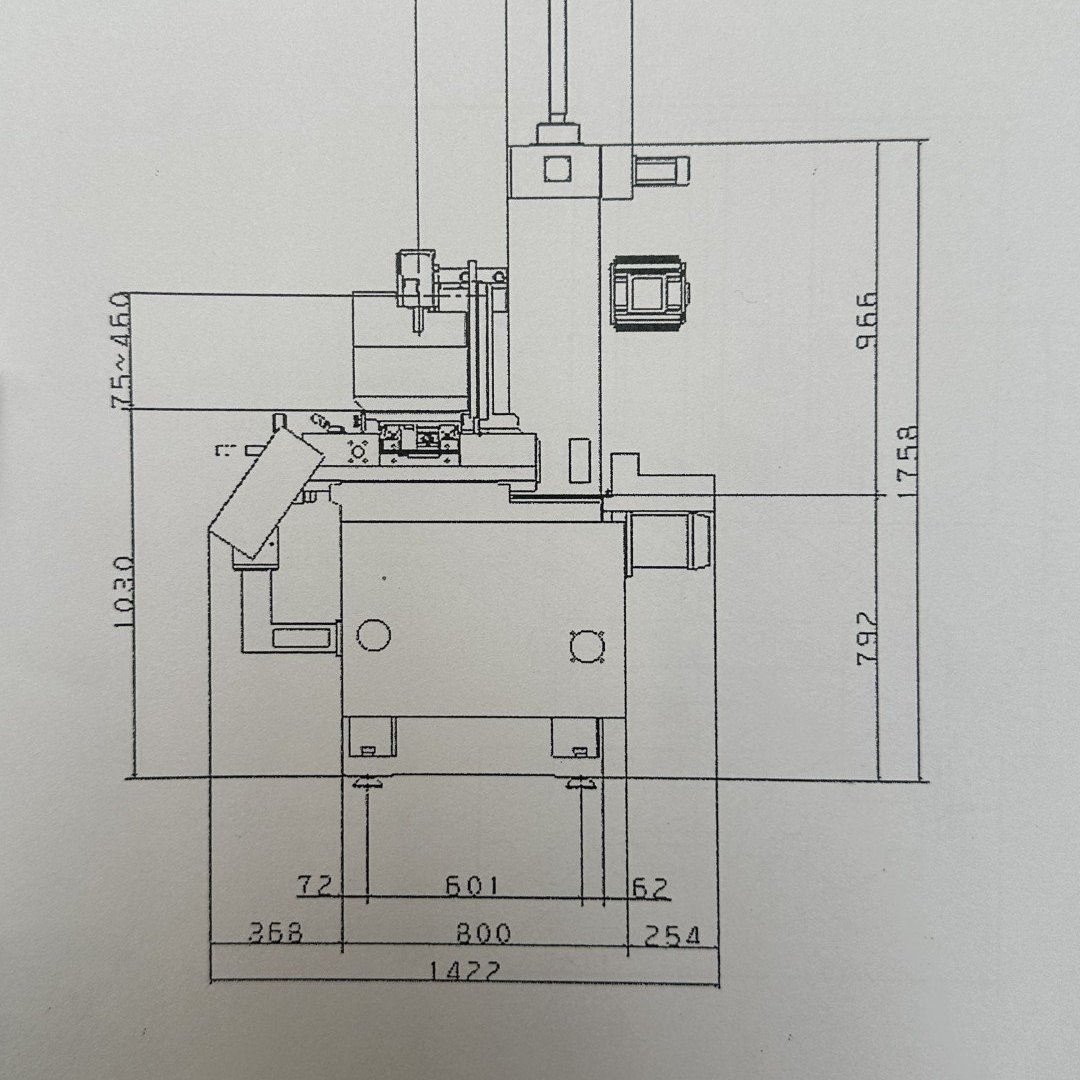

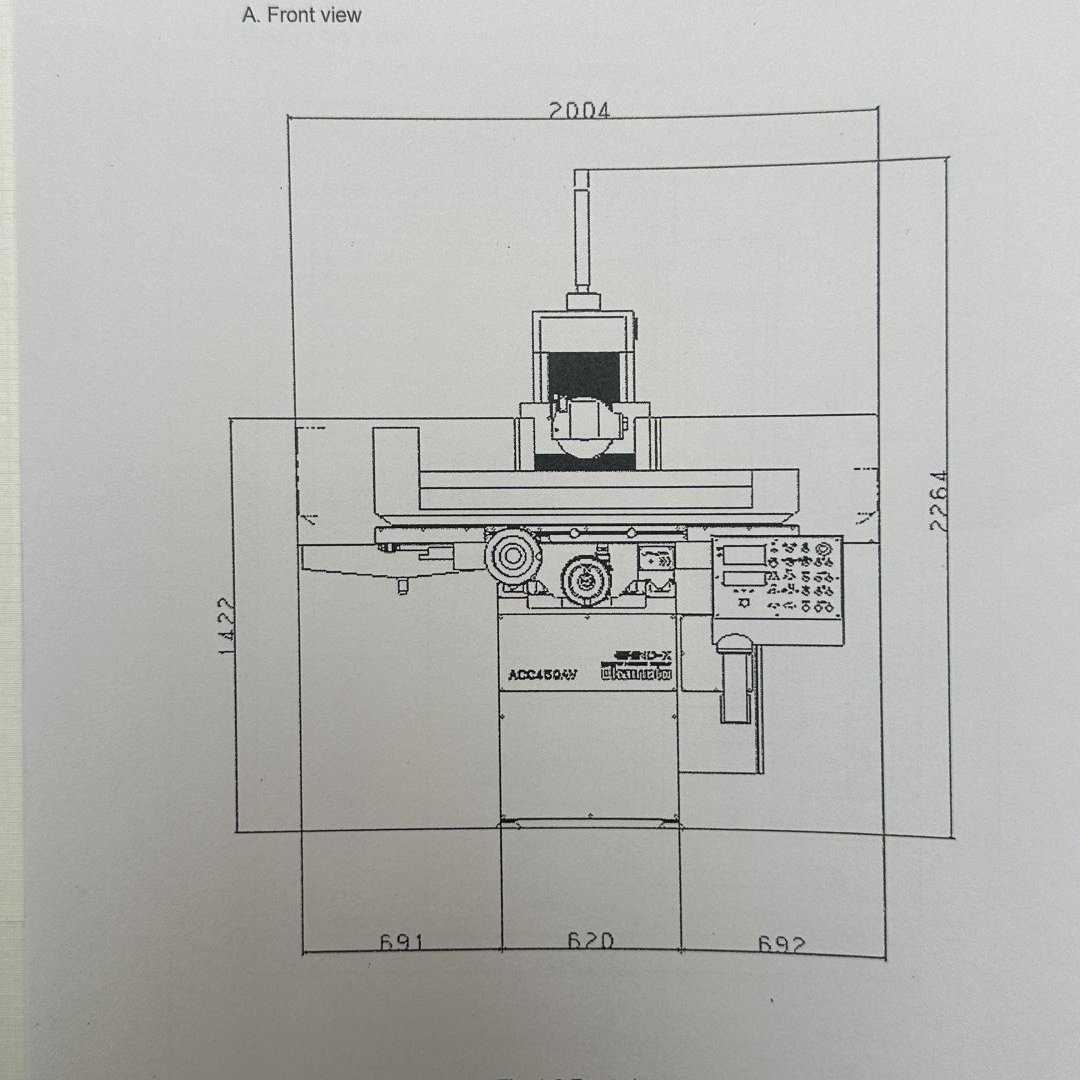

Length: 2000mm
Width: 1500mm
Height: 2300mm
Weight: 1250kg

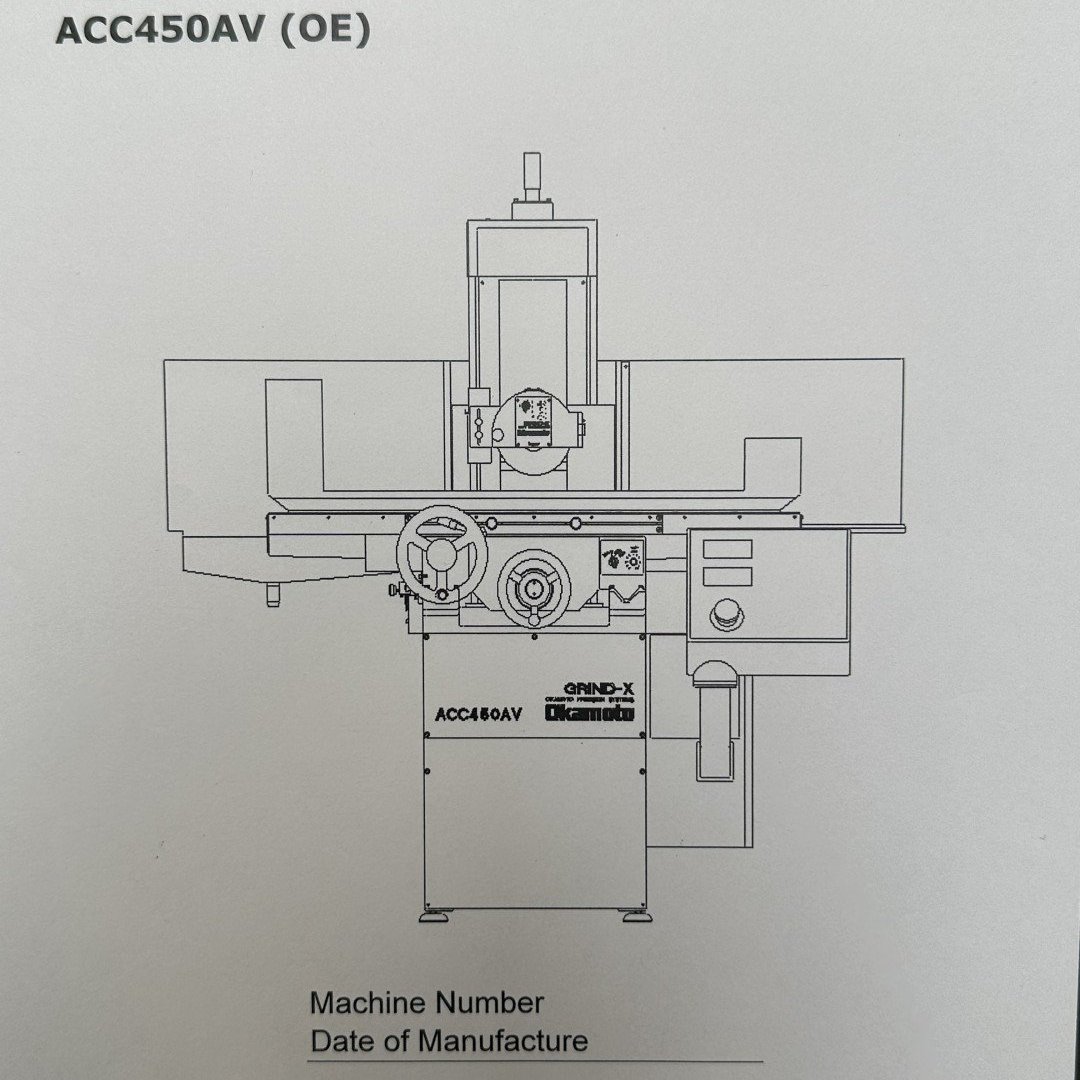

ACC 450 AV
Precision surface and profile grinding machine
To avoid effects of heat expansion and vibration, the hydraulic unit is isolated from the main unit. For the purpose of long lifetime and maintenance free operation, oil lubrication with automatic lubrication is applied to the guide and slide way. Combination of both scraped V-V slide way and low friction Turcite assure accurate grinding for life. All castings exhibit high static and dynamic stiffness and excellent damping qualities.

Surface and profile grinding machine
Available with open cover as shown or with closed cover (open top)

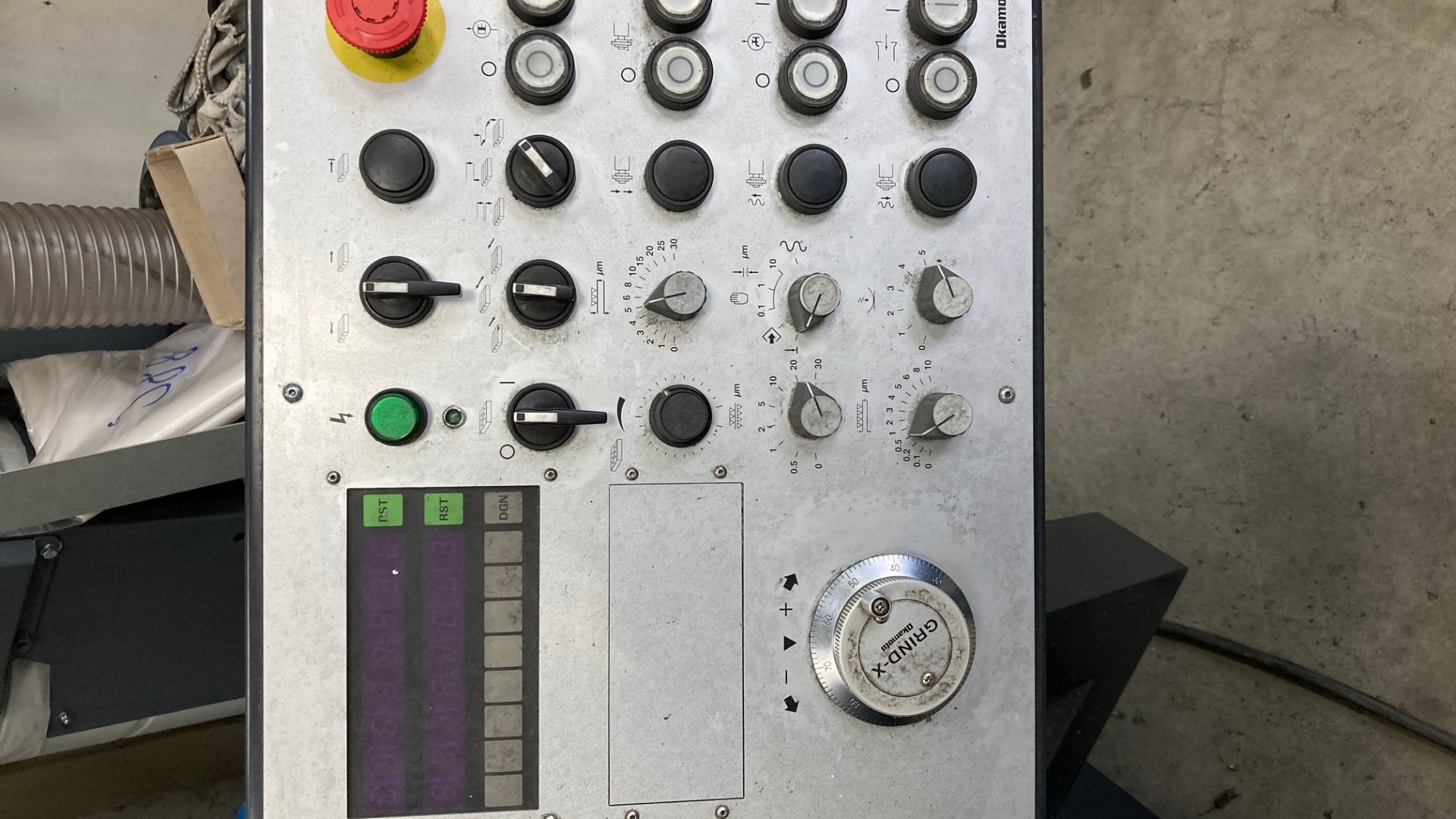

Popular and well proven latest generation Okamoto PLC controller

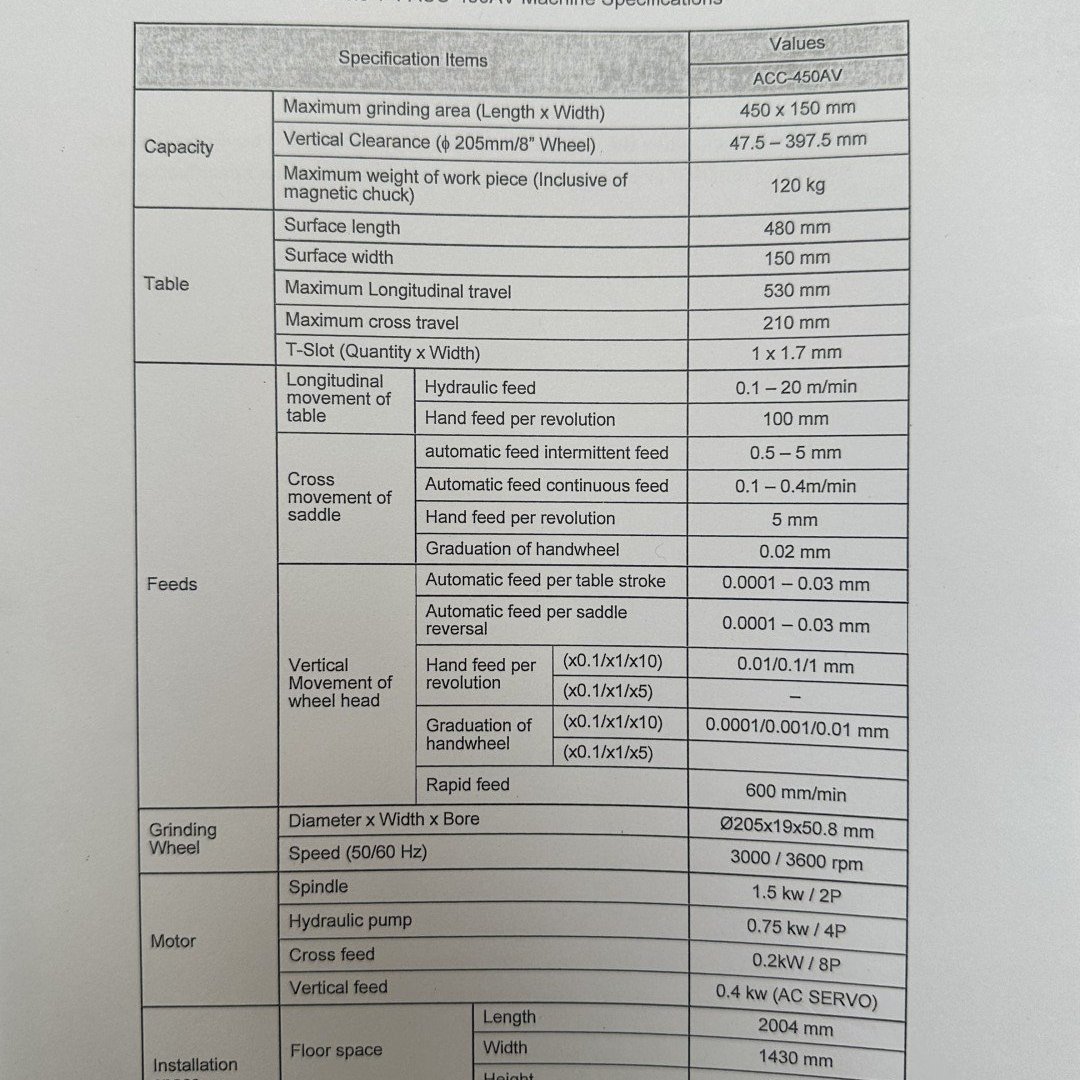

Specifications:
Surface grinder
OKAMOTO - ACC 450 AV
X - Travel: 530mm
Y - Travel: 165mm
Z - Travel: 390mm
Table Length: 450mm
Table Width: 150mm
Table load: 120
Feed rate X-Axis: 20000mm/min.
Feed rate Z-Axis: 400mm/min.
Grinding stone dimensions:205 x 19 x 31,75mm
Speeds: 3000Rpm
Feed rate Y-Axis: 400mm/min.
Length: 2000mm
Width: 1500mm
Height: 2300mm
Weight: 1250kg

ACC 450 AV
Precision surface and profile grinding machine
To avoid effects of heat expansion and vibration, the hydraulic unit is isolated from the main unit. For the purpose of long lifetime and maintenance free operation, oil lubrication with automatic lubrication is applied to the guide and slide way. Combination of both scraped V-V slide way and low friction Turcite assure accurate grinding for life. All castings exhibit high static and dynamic stiffness and excellent damping qualities.

Surface and profile grinding machine
Available with open cover as shown or with closed cover (open top)
Popular and well proven latest generation Okamoto PLC controller
Dealer name:
Mach4Metal Netherlands, Babberich
