Servo Automatic DF, Overhead wheel dresser, coolant with magnetic swarf removal. 4 available, 1992, 1995, two 2003's

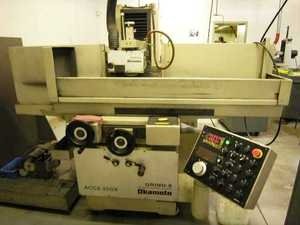

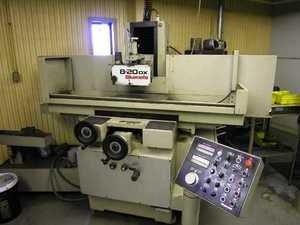

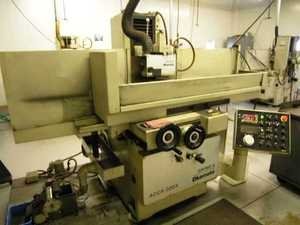

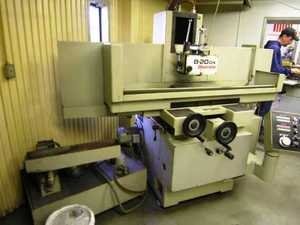

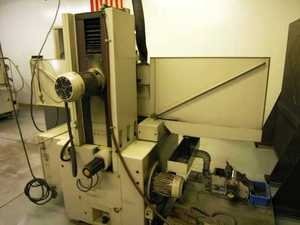

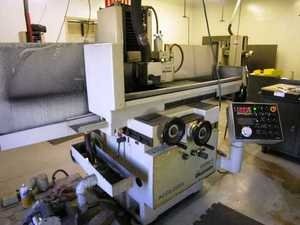

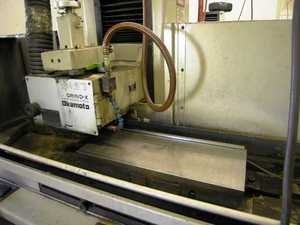

FOUR USED OKAMOTO PRECISION 3 AXIS HYDRAULIC AUTOMATIC SURFACE GRINDER

Model - ACC-8.20DX
Standard chuck size - 8" x 20"
Wheel size - 8" x 1" x 1.25" (max)
Table speeds - 1fpm to 82 fpm
Table load capacity - 440#
Automatic downfeed - 0.00005" to 0.0015"
Motor - 2hp
Table to underside of 8" grinding wheel - 15.6"
Maximum cross travel - 9.1"
Max. longitudinal travel - 26"
Weight - 3,810#

Standard Equipment
Fully Automatic Cycle with rough/fine grinding & spark out in 1 set-up

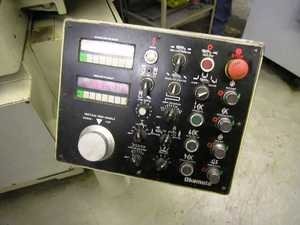

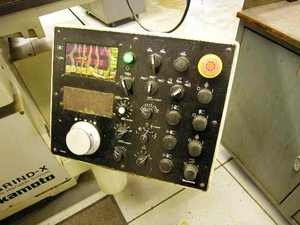

Okamoto MDI controller w/vertical positioning display
Vertical feed via a Servo motor for absolute control
Splash cover w/coolant nozzle
Built-in automatic demagnetizing chuck control
Recirculating Automatic Lubrication Table & saddle clamps
Grinding wheel w/adapter Spindle "On" pilot light
Wheel puller Solid table reverse stop
Wheel guard w/dust scoop (4) 110v outlets
Necessary tools & toolbox Swivel wheel guard
Leveling pads & bolts
Instruction manual
Optional equipment:
Coolant with Magnetic Swarf separator
Overhead wheel dresser
8” x 20” Fine Pole Electromagnetic chuck

Note: The DX model has wider ways, different bases, heavier built, and a
servo down feed with a better control of your downfeed.

SN: 62230, new 1992, with factory DRO’s on DF and Cross feed - SN: 62453, new 1995, with Sony DRO’s on CF and factory DRO on DF - SN: 62803, new 2003, Grind-X, with factory DRO’s on DF & CF - SN: 62802, new 2003, Grind-X, with factory DRO’s on DF & CF -
Best regards,

Jerry Ditter
