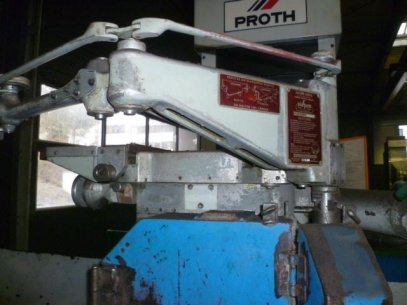

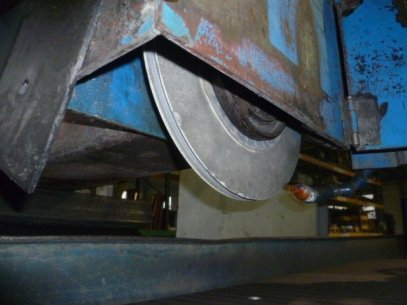

Table size 500 x 1500mm max. Travel (Y / X) 560 x 1650mm max. Distance spindle center / 700mm table height table / wheel lower edge 522mm max. Workpiece weight with magnetic plate in Daürbetrieb 1200kg max. 1500mm/min workpiece weight with magnet drive is not in Daürbetrieb 1880kg weight of the electro-magnetic plate 450kg Wheel size as standard 355 x 50 x 127mm 1500rpm spindle speed hydraulic longitudinal feed 25m/min Qürvorschub a gradual 0.1 15mm/Hub Qürvorschub continuous stepless 50 In addition, the machine Make a diaform DIAFORM type 8/1 grinding wheel width Equipped max. 80 mm translation 10 grinding wheel diameter max. 320 mm table size stencil 320 x 320 mm Machine weight 0.02 tons more info on request
