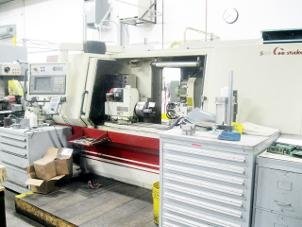

14" x 40" Studer S-40 CNC Universal ID/OD & Face Grinding Grinder

Maximum Swing 13.9"
Maximum Center Distance 39.4"
Overall Grinding Length 42"
Wheel Size 20" x 4" x 8"
Wheel Speed (Variable) to 12000 SFPM
Maximum Work Piece Weight 286 lbs
Swing Range Wheel Head (Prog. 5� Increments) -15 + 195"
Table Speed .000004-394"/minute
Maximum Swivel of Table 8.5"
Wheel Head Slide Maximum Travel (programmable) 10.75"
Wheel Head 3-Infeed Speeds (programmable) .000004-394"/minute
Work Head Swivel Range 0-90"
Work Head Speed Range 30-750 RPM
Work Head Fitting Taper Morse 5
Tailstock Fitting Taper Morse 3
Tailstock Travel of Barrel 1.18"

Equipped With:
Motor Driven With 10 HP, 3 Phase, 60 Cycle, 380 Volt, AC Spindle Drive. Transformer for 480 Volt Service. MD Hydraulics. DC Work Head Motors. AC Axis Drives. Fanuc 16BTC CNC Control With Studer PCU V6.00 Pendant Controller. Z-Axis Glass Scale. Programmable "B" Axis on Wheel Head. Graniton S200 Base. Resin Coated V and Flat Guard ways. Motor Driven Work Head. A, B, C Spindle Turret Equipped With OD Grinding Spindle, ID Grinding Spindle, Face Grinding Spindle, In-Process Gauging Arm. Tailstock With Lever Operated Quill. Swivel Table with Fine Adjustment. Programmable Dressing Cycles with Table Mounted Universal Dresser. Full Work Enclosure. Automatic Sliding Doors. Coolant and Flirtation System. Wheel Change Yoke. 8" 3-Jaw Chuck. Collet Chuck And Collets. Spare ID Spindle. Balancing Arbor. Airflow Mist Collector. Oil Chiller. ID Spindle Adapters. Approximate (5) Spare OD Wheel Mounts. Centers, Gauging Probes. Dresser Diamond Holders, Dogs.
