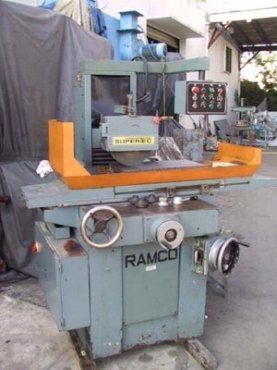

14" x 28", SUPERTEC, #STP-1428AD, 3X auto., EMC, coolant, 1984
Specifications:
SPECIFICATIONS:
Longitudinal table travel (max) 28"
Crossfeed table travel (max) 14"
Table size 12" x 24"
Height without chuck 17"
Wheel speed 2050 rpm
Grinding wheel (D x W x B) 12" x 1-1/4" x 3"
Spindle motor 2 HP
Hydraulic motor 2 HP
Table speed, infinitely variable 10 to 80 fpm
Automatic transverse increment .02" to .75"
Automatic increment dowfeed--range .0001" to .0005"
Vertical handwheel/div .0005"
Vertical handwheel/revolution .2"
Electrics 220/440/3/60
Net weight, approximate 3,700 lbs.
Dimensions (L x W x H) 75" x 55" x 82"
EQUIPPED WITH:
11-7/8" x 23-7 /8" electro magnetic chuck and control
Coolant system, Worklight, Over-the-wheel dresser, manual
