MATRIX, MATRIX 46, THREAD, GRINDERS
  • Condition:Used
  • Category:GRINDERS
  • Type:THREAD
  • Manufacturer:MATRIX
  • Model:MATRIX 46
  • YOM:-
  • Location:Lithuania, Vilnius
  • Price:On request
  • Stock No:-
  • Control:-
  • ID:AS28762
Description:

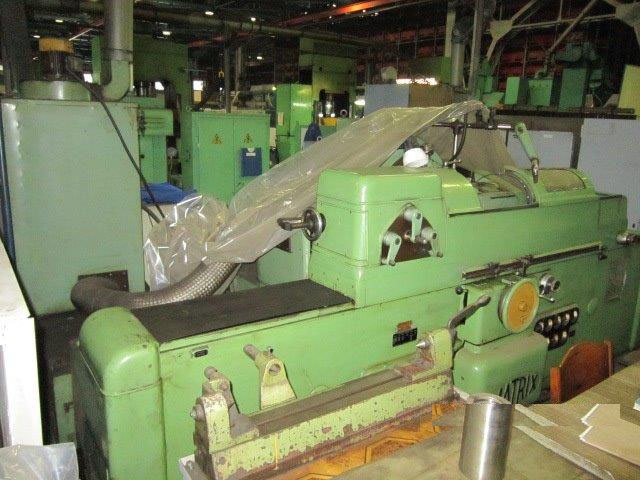

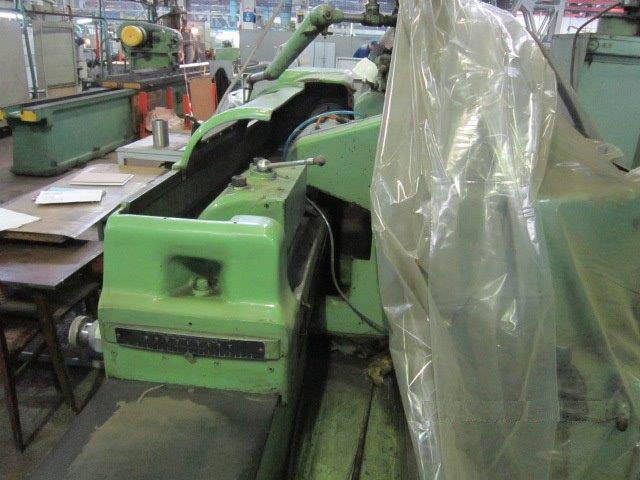

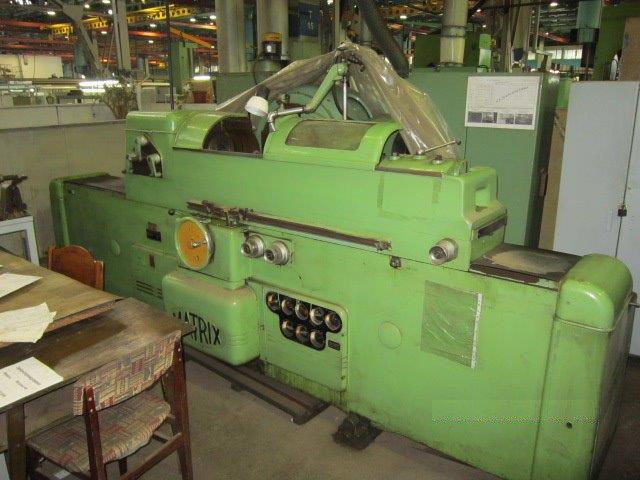

Universal worm and thread grinding machine MATRIX 46 made in England.
Specifications:
Max. work-piece diameter: 254 mm
Max. distance between centers: 1066 mm
Max. length of grinding: 1041 mm
Max. capacity of collet chuck: 38 mm
Dimensions of standard grinding wheel: 408x25x205 mm
Limits of grinding head turning: 45 degrees
Centre tapers: Morze # 4
Thread pitch: 0,42 – 305 mm
Max. pitch correction: 0,1 mm on 100 mm of length
Adjustable backing-off: 0-5 mm
Number of rotation speeds of grinding head: 20
Range of speeds of workpiece slide: 1/3 – 60 rpm
Speeds on back-run: 25,4; 80 rpm or working speed
Work-piece slide motor capacity: 0,75 HP
Grinding head motor capacity: 3,5/1,25 HP
Max. obliquity: 1:12
Width limits of grinding wheel: 9,5–75 mm
Range of grinding wheel speeds: 850–1540 rpm
Internal diameters processable: 19–228 mm
Max. diameter of hobs: 178 mm
Max. diameter of thread chasers: 254 mm
Coolant tank capacity: 136 liters
Dimensions:
-Length: 3600 mm
-Width: 2100 mm
-Height: 1300 mm
Weight:
6940 kg
Dealer name:
EMTC Machinery Lithuania, Vilnius
