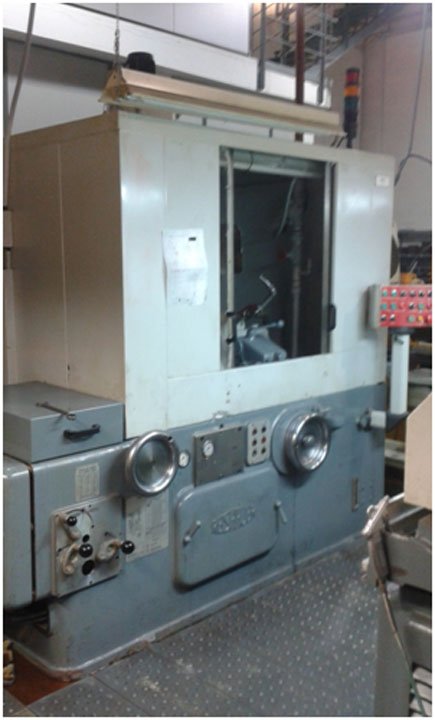

Thread grinding machine REISHAUER NRK made in Switzerland. Chasis rebuilt in 2013. Tooling and original handbook included.

Max. grinding length: 450 mm
Max.clamping length: 700 mm
Thread diameter: 3–200 mm
Thread pitch: 0,40–80 mm
Max. angle pitch: -25º / +25º
Grinding wheel diameter: 275-350 mm
Grinding wheel width: 8-40 mm
Grinding wheel bore: 160 mm
Grinding wheel speed: 1550-1900 rpm
Voltage – Freq.: 380 V, 50 Hz
Total power required: 7,5 kW

2600x1800x1600 mm

3500 kg
