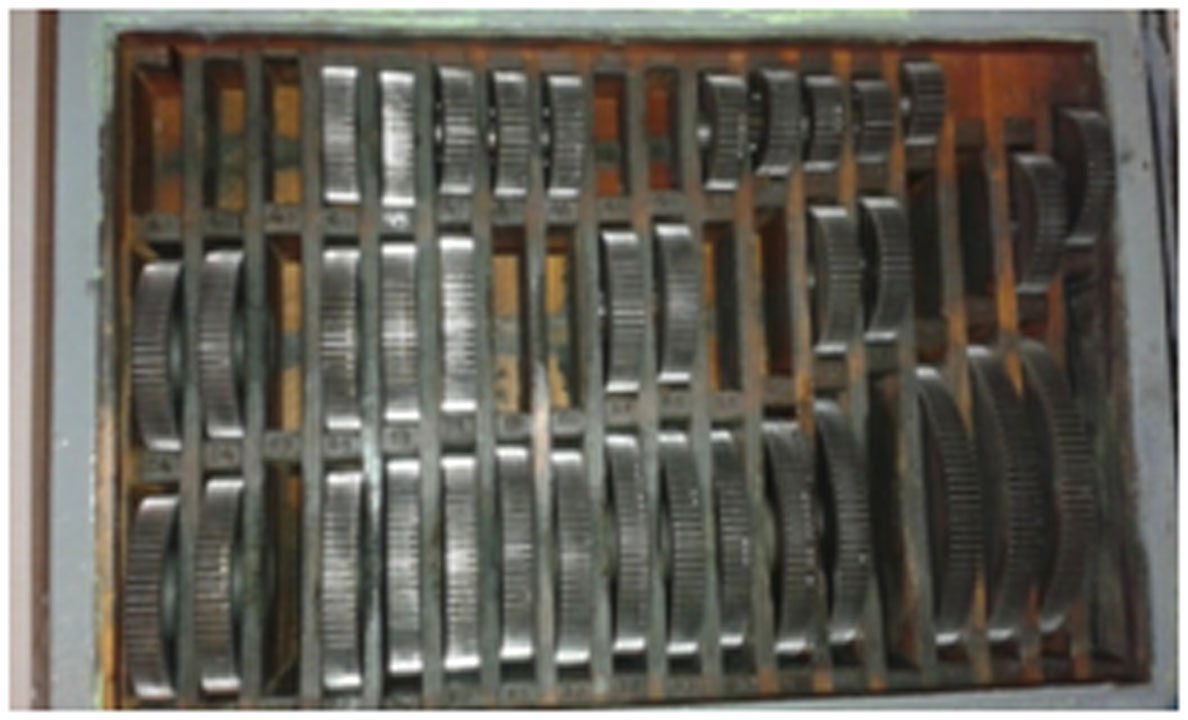

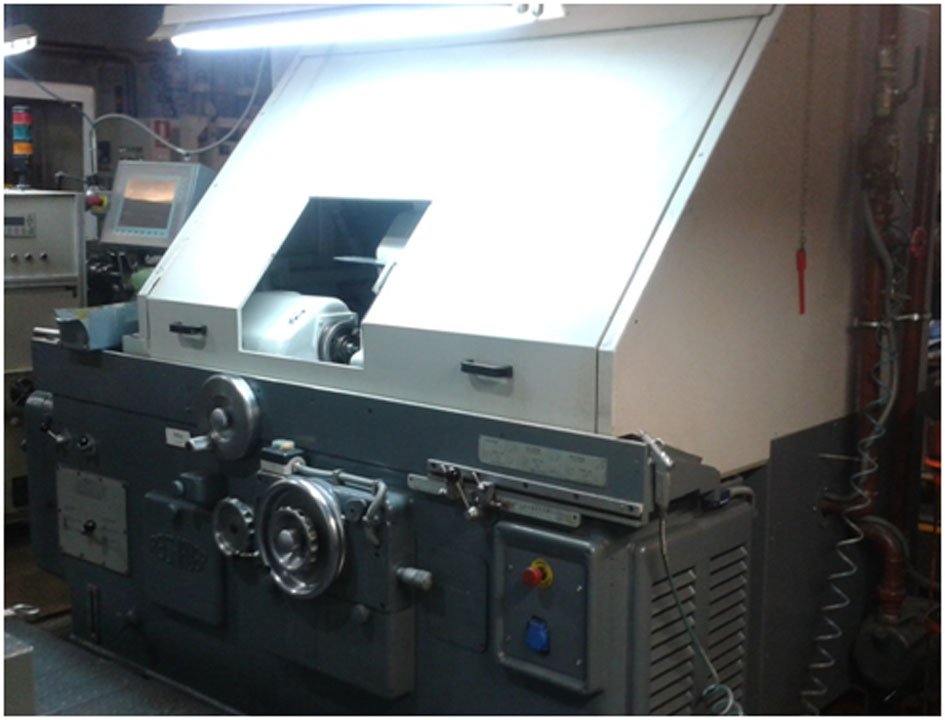

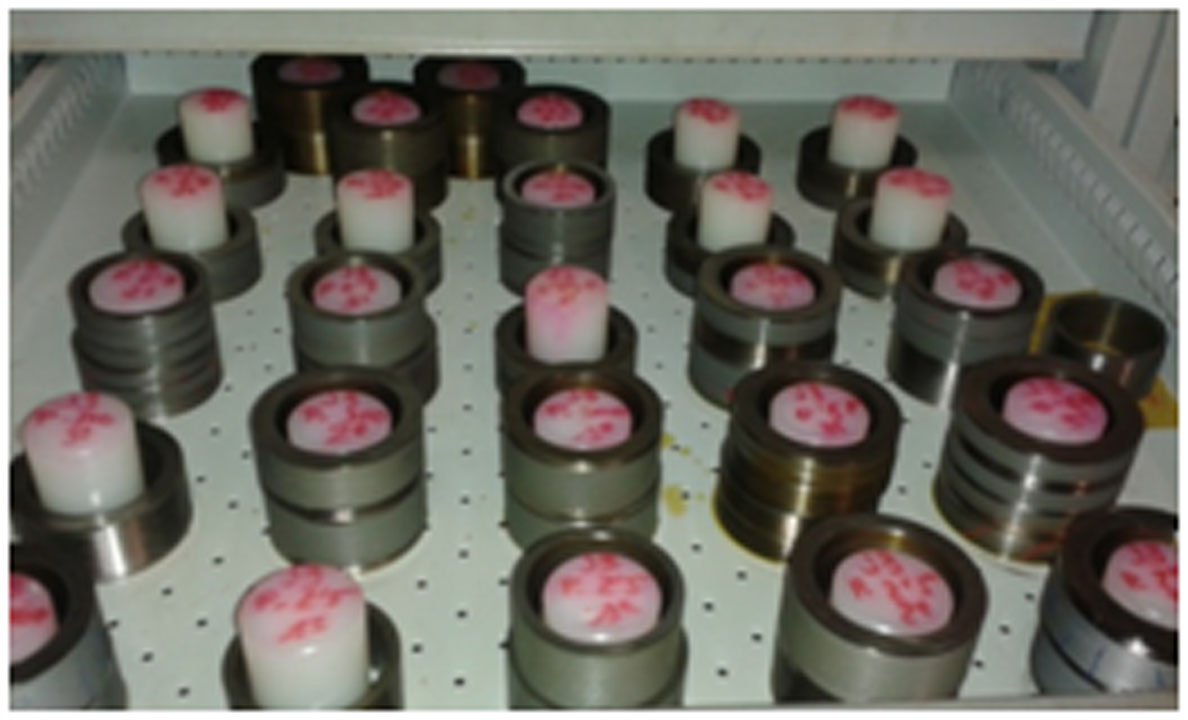

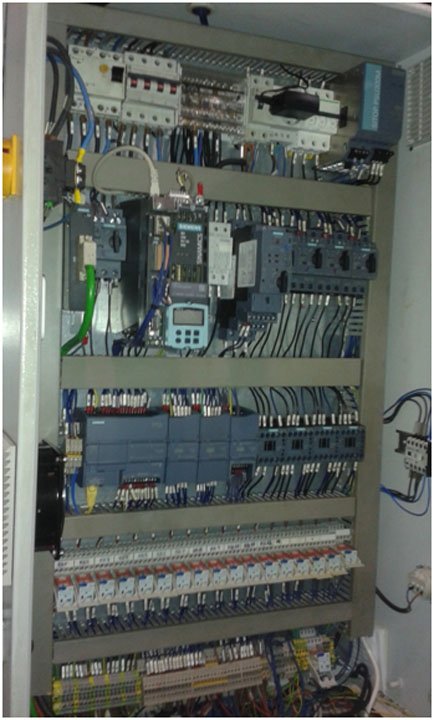

Thread grinding machine REISHAUER US 450 made in Switzerland. Completely rebuilt in 2014, including an NC Siemens control to get automatic cycles and LCD panel for instructions. Tooling and original handbook included.
Specifications:
Max. grinding length: 450 mm
Max.clamping length: 870 mm
Thread diameter: 2–250 mm
Thread pitch: 0,30–100 mm
Max. angle pitch: -40º / +40º
Grinding wheel diameter: 275-350 mm
Grinding wheel width: 3,5-40 mm
Grinding wheel bore: 160 mm
Grinding wheel speed: 1700-2540 rpm
Voltage – Freq.: 380 V, 50 Hz
Total power required: 11 HP
