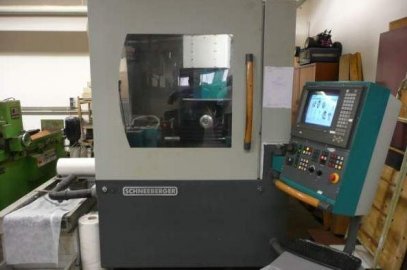

Control: Fanuc CNC Fanuc 16MB RE with integrated PLC controlled 5 axes simultaneously. Software: Qiunto grinding head: design: motorized swivel Power: Standard: Option 4 kW: 7.5 kW spindle speed: standard. 2000 9 000 1/min option: 2000 .15000 1/min spindle: Standard: 20-outer cone option: HSK 32 axes: Power: 0.5 kW grinding motion: x-axis: Stroke: 350 mm Top speed: 15m/min Resolution: 0, 0001 mm, abrasive delivery: y-axis: Stroke: 270 mm Top speed: 15m/min Resolution: 0.0001 mm Height adjustment: z-axis: Stroke: 290 mm Top speed: 7.5 m / min resolution; 0.0001 mm Dividing: A-axis : Stroke-free rotational motion resolution: 0001 Taper: ISO 50 (ISO 40) Height: 210 mm rotary axis C-axis: Rotation: + / - 180 Resolution: 0001 machine table: LxW 1200x230 mm, with 3 T-slots 14 according to DIN 650 machines Dimensions: WxDxH 1350x3150x2400 mm Weight: 4000 kg in Electrical Power supply: Power consumption: 18 kVA (4 kW motor) / 25 kVA (7.5 kW motor) Voltage: 3x400 V AC Frequency: 50 Hz Line fuse: 18 AT / 25 AT About Holte Schneeberger Slept machine tool. Condition: Good In the last 3 years, only very rarely used, since the machine was purchased for special grinding options. Cooling water, but can be converted to oil.
