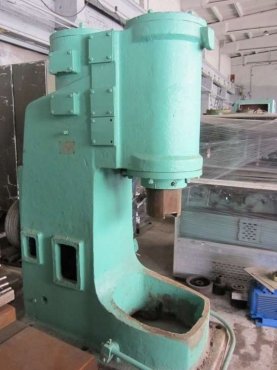

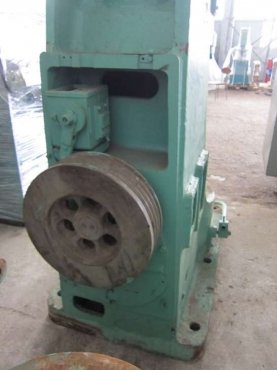

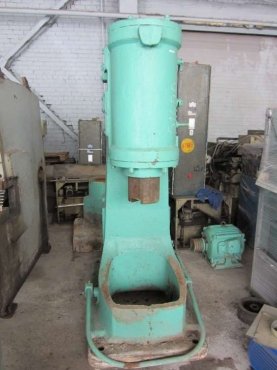

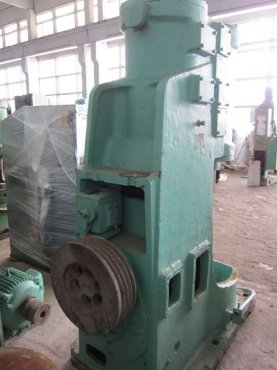

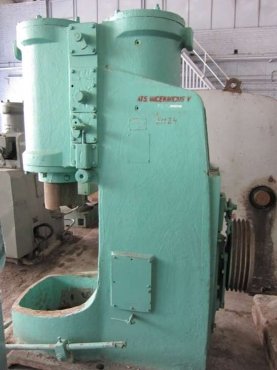

Pneumatic air forging hammer model MA4132 made in Russia.
Specifications:
Weight of the falling parts: 160 kg
Number of strokes per min: 196
Effective kinetic energy of falling part by stroke: 250 kg/m
Distance from ram axis-to-frame: 350 mm

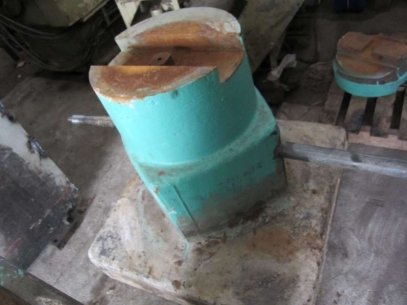

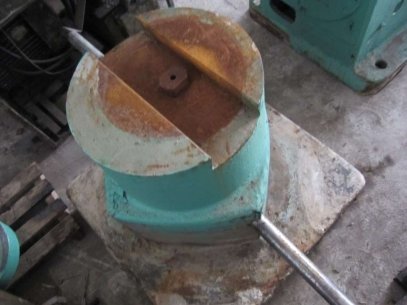

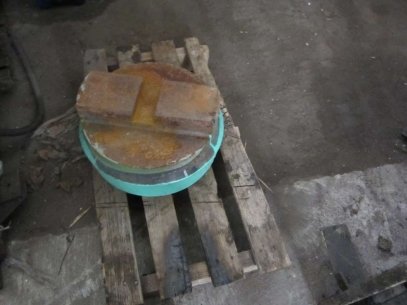

Anvil dimensions:
-Length: 190 mm
-Width: 75 mm
-Anvil height above the floor: 800 mm
Diameter of working cylinder: 315 mm
Diameter of compressor cylinder: 330 mm
Stroke run: 390 mm
Optimal stamping section of work-piece:
-Square: 70 mm
-Rounded 80 mm
