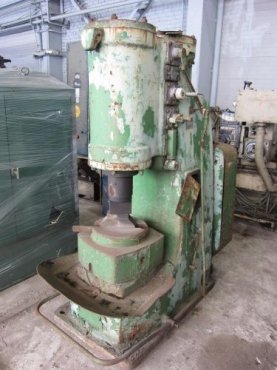

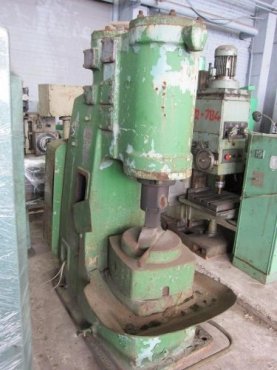

Pneumatic air forging hammer model MA4129 made in Russia.
Specifications:
Weight of the falling parts: 80 kg
Number of strokes per min: 210
Effective kinetic energy of falling part by stroke: 140 kg/m
Distance from ram axis-to-frame: 300 mm
Anvil dimensions:
-Length: 130 mm
-Width: 63 mm
-Anvil height above the floor: 800 mm
Diameter of working cylinder: 250 mm
Diameter of compressor cylinder: 260 mm
Stroke run: 385 mm
Optimal stamping section of work-piece:
-Square: 60 mm
-Rounded: 80 mm
