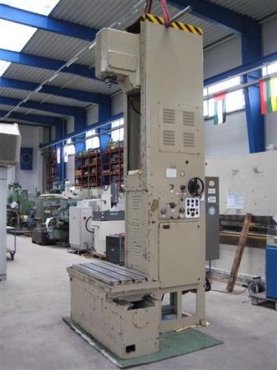

Stock-No. 1106-HN3

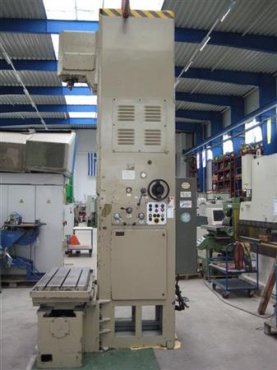

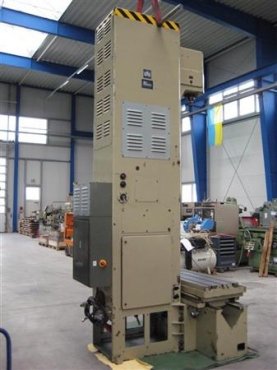

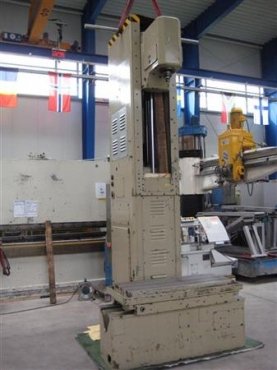

Type of machine Honing Machine - Internal - Vertical
Make WMW MIKROSA
Type SZS 200 x 1000C
Year of manufacture 1966/GU1977

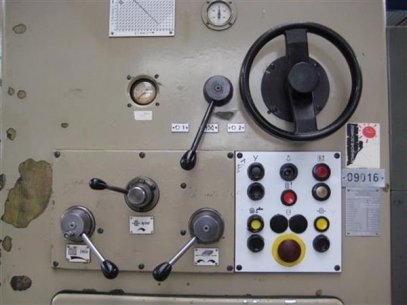

Type of control konventionell
Storage location ex Store Jena
Specifications:
Technical details
honing diameter 25 - 200 mm
stroke 2 - 16 mm
throat mm
total power requirement 10,5 kW
weight of the machine ca. 5500 kg
dimensions of the machine ca. 1700 x 1900 x 4000 mm
spindle drive 1440 U/min - 4 kW
distance spindle center to column 360 mm
honing length max. 1000 mm
workpiece height max. 1250 mm
number of spindles 1 Stück
spindle turning speed - stepless 36-315 in 2 Bereichen 36…105 & 105…315 U/min
feeds of stroke (infinitely adjustable) 2 - 16 m/min
distance spindle nose and table 1260 mm
table-size 500 x 1250 mm
table longitudinal travel -quwerweg 630/63 mm
T-slot - distance 160 mm
T-slots 3
