For Sale Listings

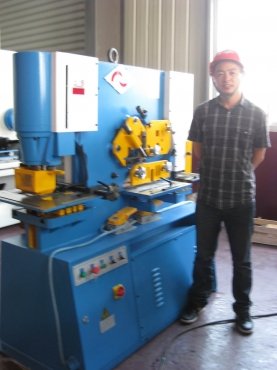

JUGAO, Q35Y-16, MECHANICAL, IRONWORKERS
  • Condition:New
  • Category:IRONWORKERS
  • Type:MECHANICAL
  • Manufacturer:JUGAO
  • Model:Q35Y-16
  • YOM:24
  • Location:China, Nantong
  • Price:7133 USD
  • Stock No:20150316
  • Control:Manual
  • ID:AS23236
Description:
If you fabricate with mild steel, you’ll want one of these punch & shears working for you. With five independent stations for punching, flat bar shearing, notching, angle cutting and section cutting, you’ll appreciate the convenience and labour savings over traditional methods. A work stop is included for cutting uniform parts to length and a safety foot pedal makes operation extremely easy. Production tooling pack also supplied with 10 complete sets of round punch and dies.
Now fitted with new electric touch & cut, halogen work light & lubrication pump at no extra cost!!!
Specifications:
Features
❚ Single cylinder hydraulic punch & shear machine
❚ Large punch table with multipurpose bolster, removable table block for overhang channel / joist flange punching applications
❚ Easy change punch holder fitted
❚ Punch adapters supplied
❚ swing-away punch-stripper unit
❚ Universal die bolster
❚ Flat plate shearing station with square & angle guides
❚ Angle cropping station
❚ round and square solid cropping station
❚ Rear notching station
❚ Low power inching and adjustable stroke at punch station
❚ overload relief on the hydraulic system
❚ centralised pressure lubrication system
❚ roving foot pedal operation
❚ Emergency stops
❚ Machine manual
❚ Service toolkit
❚ Hydraulic oil supplied
❚CE compliant
Dimensions:
1720 mm X790mm X 1880mm
Weight:
1700.00 Kgs
