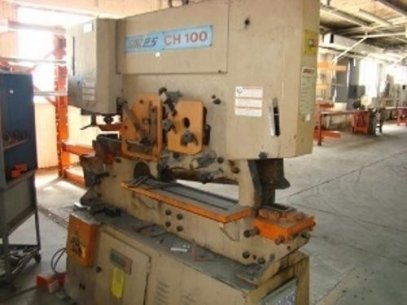

Omes 100 Ton, 12 HP Hydraulic Ironworker with Tooling

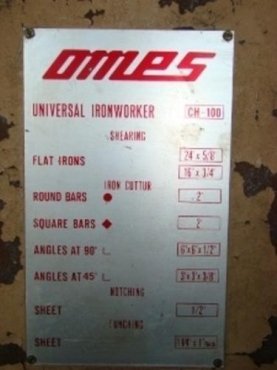

Specifications:
Model number CH 100
SPECIFICATIONS:
PUNCHING:
Tonnage 100
Diameter x thickness (approx) 1-1/4" x 1"
Throat depth 12"
PLATE SHEARING:
Blade cutting length 24"
Plate capacities 24" x 5/8"
16" X 3/4"
Angle @ 90 degrees 6" x 6" x 1/2"
Angle @ 45 degrees 3" x 3" x 3/8"
Round bar 2"
Square bar 2"
RECTANGULAR NOTCHER:
Maximum capacity 1/2" X 4" X 2"
MISCELLANEOUS:
Main motor 12 HP
Electrics 230/460/3/60
Approximate net weight 5,300 lbs
EQUIPPED WITH:

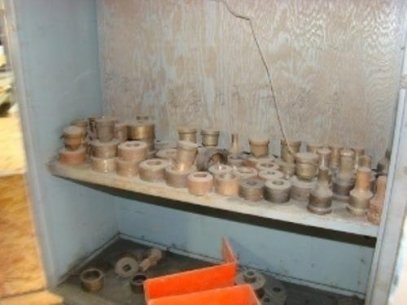

Electronic foot pedals, Adjustable stroke, Assorted punches and dies
Twin cylinders enables you to operate the machine from both sides
