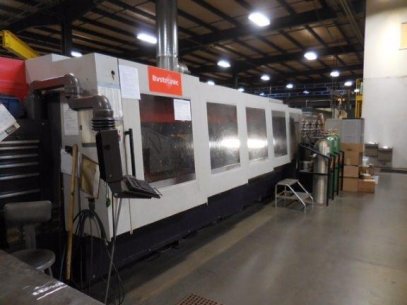

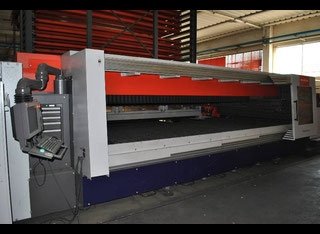

Name BYSTRONIC Byspeed 4020 Laser Cutting Machine
Item No. 228610
Manufacturer BYSTRONIC
Model / Type Byspeed 4020
Year of manufacture 2006
Machine available from immediately
laser capacity 4,4 kW
Weight approx. 43000 kg
Dimensions (l x w x h) approx. 7800 x 8450 x 0 mm
Specifications:
Bystronic Byspeed 4020;
4.4Kw
Run time. 19813h
Beam On time.7044h
The machine is in good condition and been on a gold service contract with Bystronic for the past two years. The machine has been regular serviced and all paper work can be seen.
Total Machine dimensions = 7805mm x 8450 (including light guards).
Machine weights:
Machine frame ( including SPC/CNC/VML- control unit) - 23000kg.
Lifting unit 2x 2540kg
Actuator 3140kg
Intermediate frame 1050kg
Shuttle table 2x 1550kg

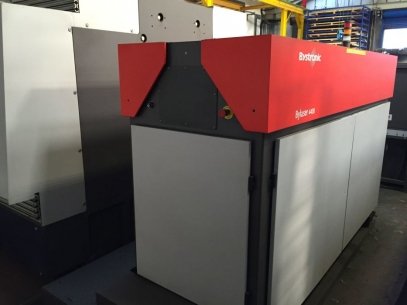

Resonator 1900kg
Fume exhaust 900kg
Chiller 1000kg
Donaldson extraction unit ( including ducting) 2100kg. please not this can be stored outside.
Working range 4064 x 2032
Sheet size up to 4000 x 2000.
1 x 5” cutting head.
1 x 7.5” cutting head.
1 x set of beam alignment equipment.
Max. cutting speed 50000 mm/min.
Laser cutting system Bylaser 4400.
Cutting range;
Mild steel 0.5mm to 20mm
Stainless steel 0.7mm to 15mm
Aluminium 0.5mm to 12mm
Copper 1mm to 3mm
Brass 1mm to 3mm
Other types of exotic material can be cut using the cutting technology of the above materials.
Total actual power output 4520W.
7 bar compressed air needed.
