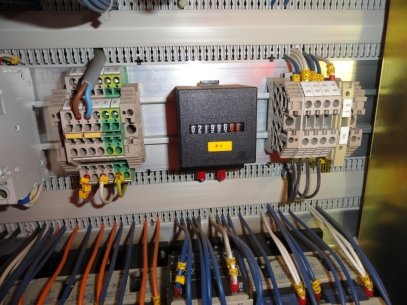

working hours machine: ~ 22.000 h (stand 10-15)
working hours laser: ~ 60.000 h (stand 05-15)
working range X x Y x Z: 3064 x 1532 x 170 mm

laser

laser type: DC- tube generated
laser capacity CW: 3000 Watt
laser range capacity: 150 - 3000 Watt

machine

CNC-control: CNC Bystronic MMC CNC 96
cooling unit: Hyfra Pedia HT 45

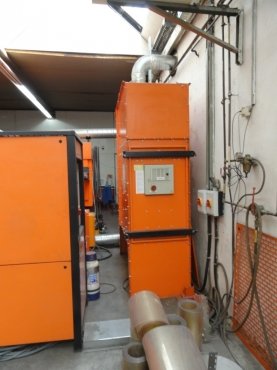

dust extraction: Herding HSL 1500/9 SB
electrian capacity total: 54 KW machine
space needs ca.: 12.000 x 6.200 x 2.070 mm
weight total ca.: 13.500 KG

cutable materials and thicknesses

mild steel ( EN 10027-1 S 235JR+AR or rec. Raex-Qualität) 20 mm
inox ( EN 10027-2 1.4301 (X5CrNi18-10 ) 12 mm
aluminum (z.B. 3.3535 AlMg3 ) 8 mm

machine description

standard options:
• cutting machine with operator safety advice by cutting, loading and unloading

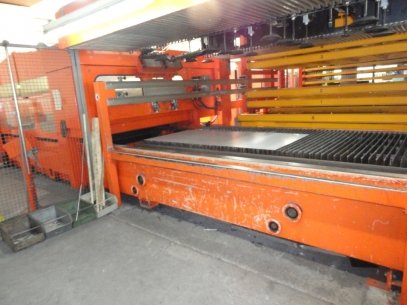

• automaticly table changer
• 2 cutting heads with 5“ + 7,5“ lenses
• reflexions absorber, cut control, Crossjet, Bypos-W
• partical dust extraction system

options:
• no Bycell storage system included
• without laser gas cabinet


revision and conditions:
• service through the manufactor/company
• machine is in production

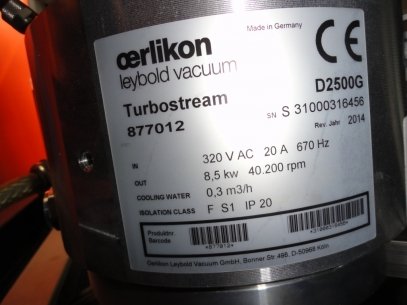

• renewed blower in 2014

-

13.500
