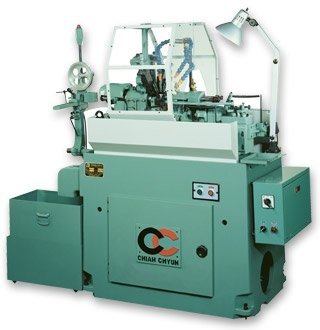

C-1525AD/CD C-1525A/C

o. of tools 5
No. of tailstock 2
Max. dia. of processing ○15
□10
12
Max. processing length
of no. 1 tool 35
Max. processing length
of no. 5 tool 25
Max. dia. of drilling 10
Max. depth of drilling 30
Max. dia. of tapping Free cutting brass M12xP1.25
Free cutting brass pitch P3.0 mm
Free cutting iron M8xP1.0
Free cutting iron pitch P2.0 mm
Main spindle rotating speed 1800-6500 rpm
2150-7250 rpm
No.of conversion
of main spindle rotating speed 5
Cam shaft rotating speed 1.3-33 rpm
No. of conversion
of cam shaft rotating speed 15
Main spindle motor 2 HP(1.5 kw)
Machining oil pump motor 1/4 HP(0.18 kw)
Cam shaft motor -
Machine size (LxWxH) 1500x 700x 1450
Measurement (LxWxH) 1800x 820x 1700
N.W. 800 kgs
