material passage : Ø 34 mm
collet chuck : 171 DIN E
max. machining length off- the- peg : 150 mm
max. machining length of chuck parts : 175 mm
spindle drive motor :
speed range infinitely variable : 170 - 5.000 U / min
drive power ( 30 min / 100 % ED): VAC 5,5 / 3,7 kW
main spindle :
Spindle front : flat
spindle outer diameter : Ø 110 mm
inner diameter, spindle liner tube : Ø 36 mm
revolver : fcollet chuck : 171 DIN E
max. machining length off- the- peg : 150 mm
max. machining length of chuck parts : 175 mm
spindle drive motor :
speed range infinitely variable : 170 - 5.000 U / min
drive power ( 30 min / 100 % ED): VAC 5,5 / 3,7 kW
main spindle :
Spindle front : flat
spindle outer diameter : Ø 110 mm
ast - acting by AC - drive and face gear
stations : 8
switching time, station to station : 0,3 sec.
switching time 180° : 1,0 sec.
travel x - axis : 100 mm
travel z - axis : 185 mm
rapid traverse x - axis : 12 m / min
rapid traverse z - axis : 14 m / min
feed rate per revolution ( G99) : 0,001 - 50 mm / U
feed rate per minute ( G98) : x - axis : 1 - 12.000 mm / min
feed rate per minute (G98) z - axis : 1 - 14.000 mm / min

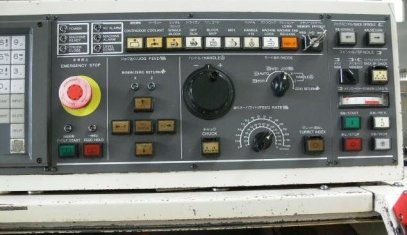

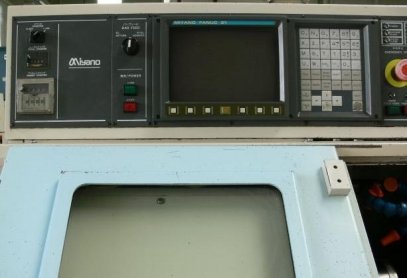

2 - axis CNC - control with 9" monochrom screen
length x width without bar feed : 1.895 x 1.300 mm
height : 1.630 mm
weight : 2.300 kg
air requirement : 5 bar
total connected load : 20 kVA
power supply +/- 10 % : 200 / 50 V / Hz
