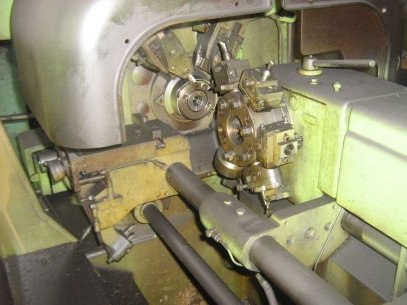

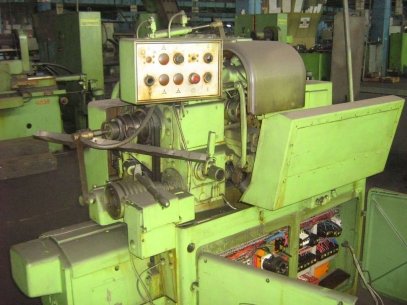

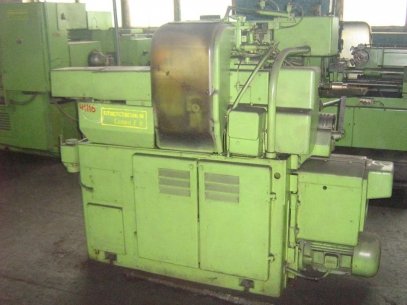

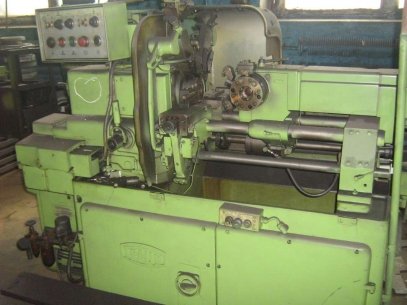

Single-spindle bar automatic lathe TRAUB TBF 42 made in Germany.
Specifications:
Max work-piece dimension clamped in the collets according to PIN 6343: 42 (circular)
Spindle rotation frequencies: 160...1600 rpm
Max crush stroke: 165 mm
Max dimension from butt-end of spindle clamping collet to butt-end crush: 370 mm
Cross slides
Number of slides: 4
Max stroke of:
-Front slides: 40 mm
-Back slides: 40 mm
-Upper slides: 40 mm
Vertical support
Number of slides: 2
Max slide stroke: 40 mm
Number of slots of revolving head: 6
Diameter of slots of revolving head: 1"
Max turn radius: 185 mm
Max stroke of revolving slides: 100 mm
Max stroke of fast intake-offtake: 50 mm
Rotation frequencies of machine spindle: 16...1600 rpm
Max external thread diameter (in automatic steel): M 30
Max turning length: 100 mm
