TRAUB, TD-26, AUTOMATIC-PRODUCTION, LATHES
  • Condition:Used
  • Category:LATHES
  • Type:AUTOMATIC-PRODUCTION
  • Manufacturer:TRAUB
  • Model:TD-26
  • YOM:1980
  • Location:Lithuania, Vilnius
  • Price:On request
  • Stock No:-
  • Control:-
  • ID:AS20156
Description:

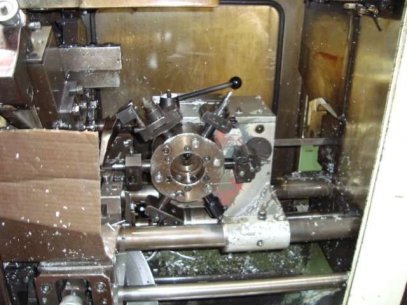

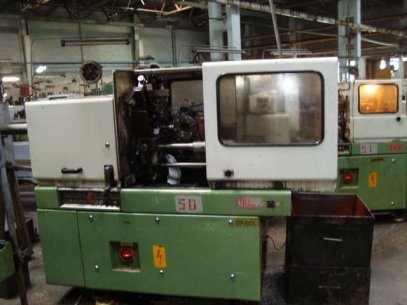

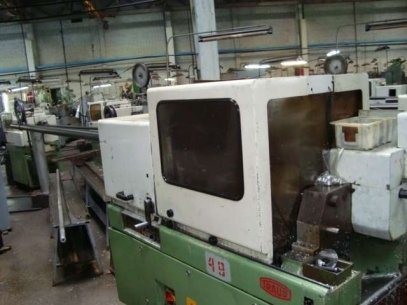

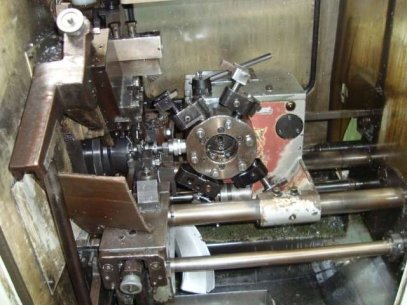

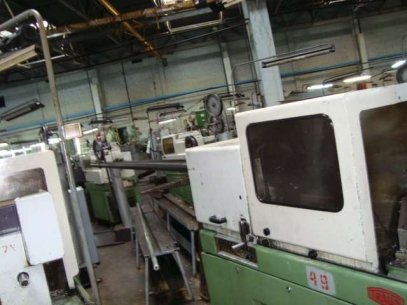

Single-spindle bar automatic lathe TRAUB TD-26 made in Germany. Quantity: 2 units.
Specifications:
Carriage:
-Amount of slides: 4
-For radial operated tools
Diameter of work admitted: 26 mm
Spindle capacity with collets:
-Round, up to 26 mm
-Hexagonal, up to 22 mm
-Tetrahedral, up to 18 mm
Spindle passage: 22 mm
Turning length: 70 mm
Max chuck size: 86 mm
Max work-piece diameter: 86 mm
Distance from chuck to tailstock: 285 mm
Spindle speeds: 500-4750 rpm
Electric motor:
-Power: 2.2 kW
-Rotation: 1420 rpm
Voltage: 50 Hz, 3x380 Volt
Overall power of electric equipment: 2,57 kW
Dimensions:
1700x800x1600 mm
Weight:
about 850 kg
