Max dia. of workpiece
Above slide: 1600mm
Above bed: 2000mm
Min dia. of workpiece 400mm
Height of centres: 1060mm
Max. distance between centres: 10,000mm
Max. length of slanted tapers turned: 1700mm
Pitch of thread cut over the entire length of carriage traverse: 296mm (12 3/8")
Max. weight of workpiece: 63 tons

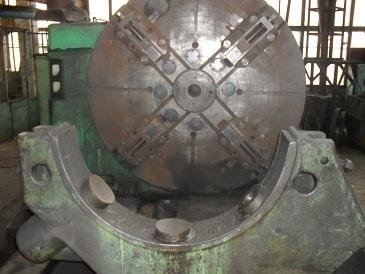

Head stock: faceplate diameter 2000mm

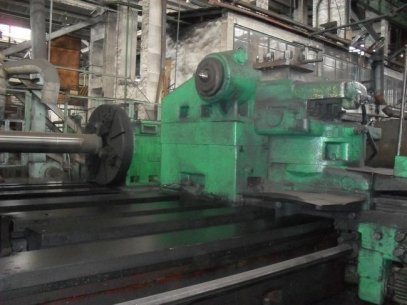

Tail stock quill diameter 400mm
maximum quill traverse 400mm
Machine overall dimensions:
(length x width x height) 18300 x 4300 x 2850mm
Weight: 90 tons
