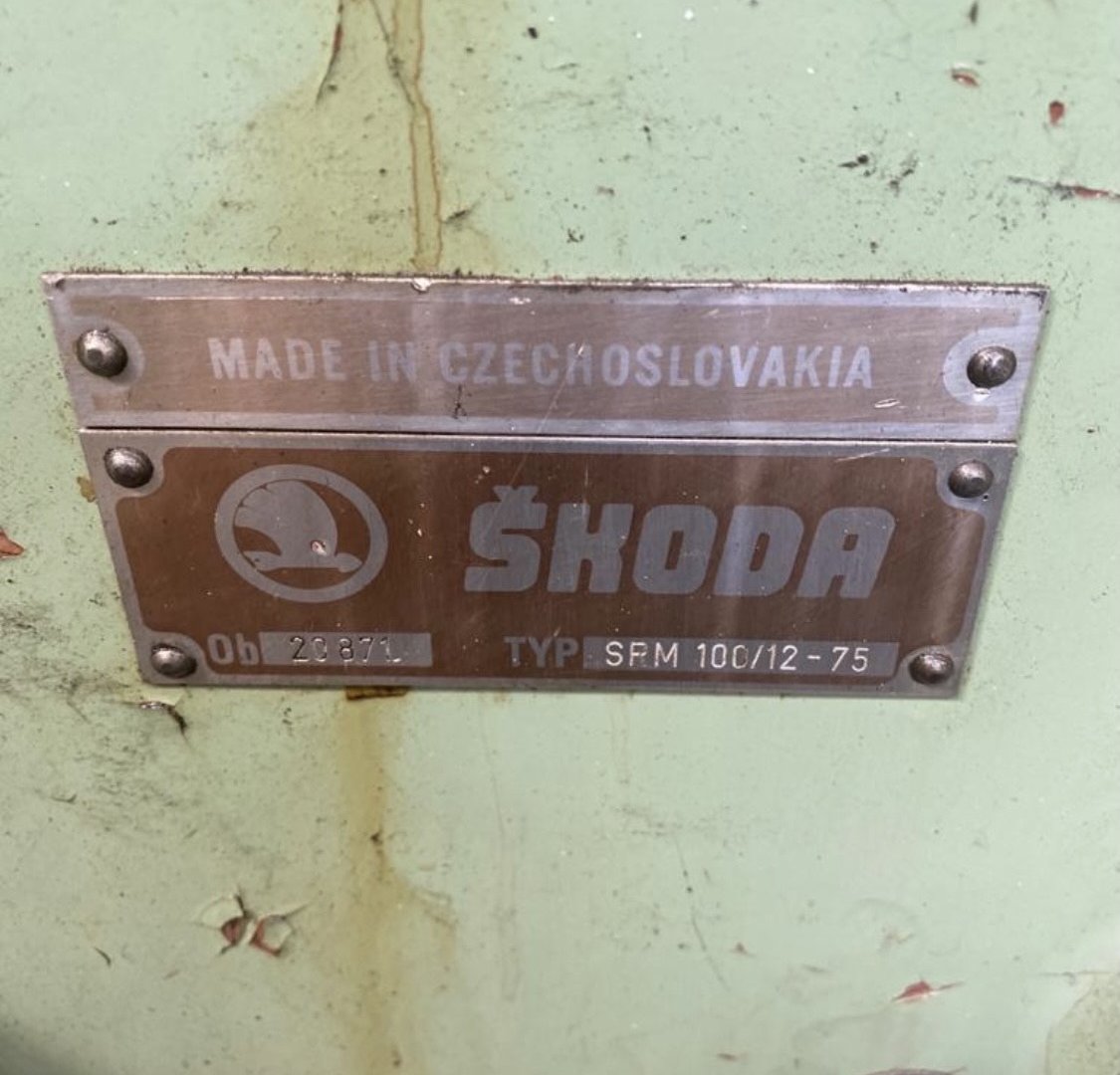

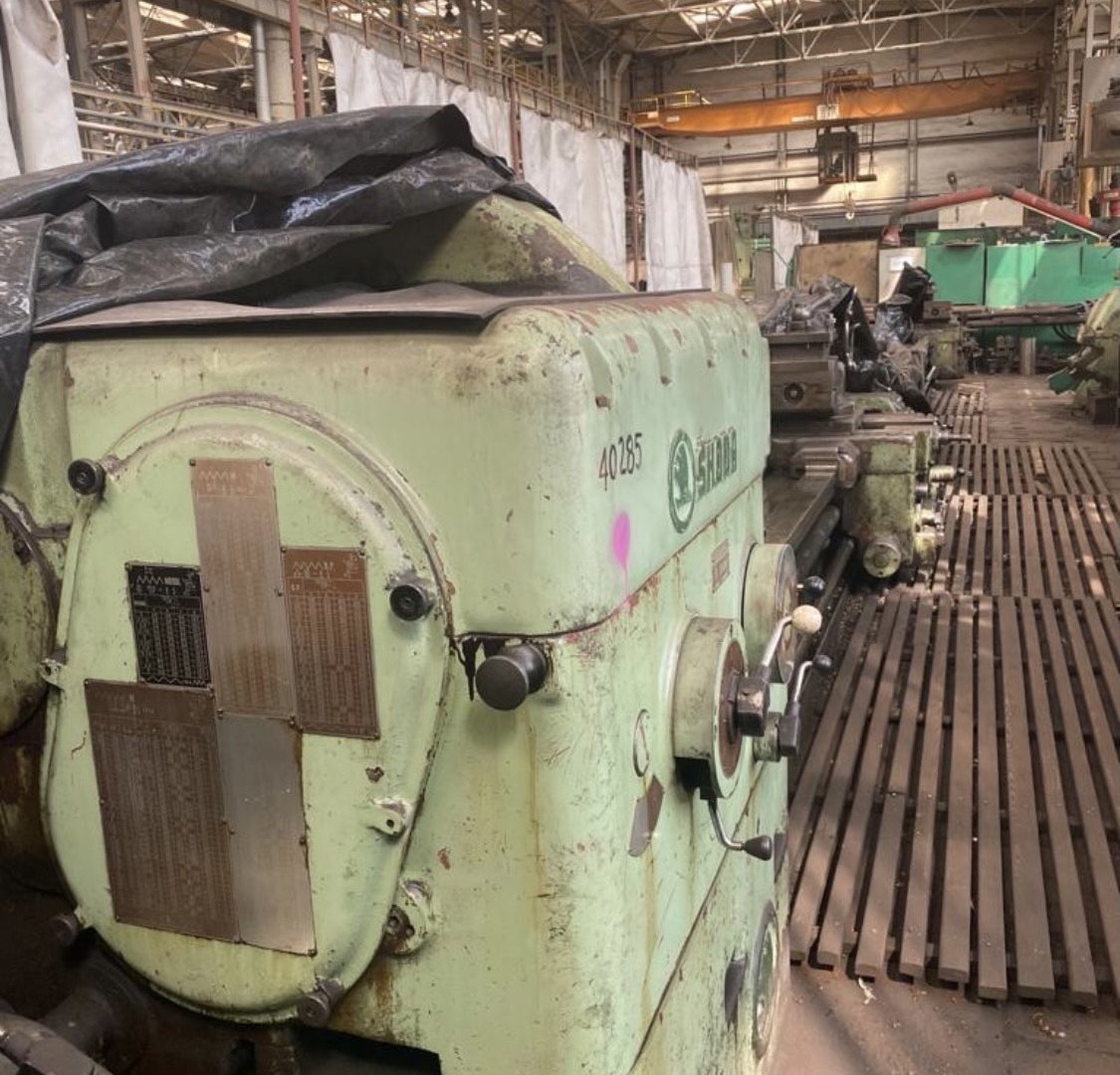

Center Lathe Skoda Type SRM 100/12 - 75
Between Center 13400mm (12.4m + 1m extension)
Swing Over Bed 1100mm
Swing over cross slide 740mm
Height of centers above bed 500mm
Max torque on face plate 2500 kg.m
Max weight of work piece between centers (without rests) 10000 kg
Height of bed 620mm
Width of bed 950mm
Spindle speeds (36 steps): (1st range) 1.8 - 90 rpm, (2nd range) 8 - 400 rpm
Diameter of taper in spindle 80/1:10 mm
Diameter of face plate 1000mm
Longitudinal feeds (36 steps): 18 feeds (1st range) 0.125 - 6 mm, (2nd range) 1.8 - 11.2 & 8 - 50 rpm: 1 - 48mm, 1.4 - 9 & 11.2 - 71 rpm: 1 - 48 mm
Cross feeds and feeds of tool slide 0.4 x longitudinal feeds
Max cross section of tool for tool holder: 70 x 70 mm
Max cross section of tool for 4-way tool post: 50 x 50 mm
Longitudinal rapid traverse 3600mm per min
Metric threads 1 - 50 mm (28)
Module threads 2 - 50 (28)
Diameter of tailstock sleeve 170mm
Diameter of taper in tailstock sleeve 80/1:10 mm
Sliding movement of the tailstock sleeve 200mm
Travel of tailstock sleeve 2150mm per min

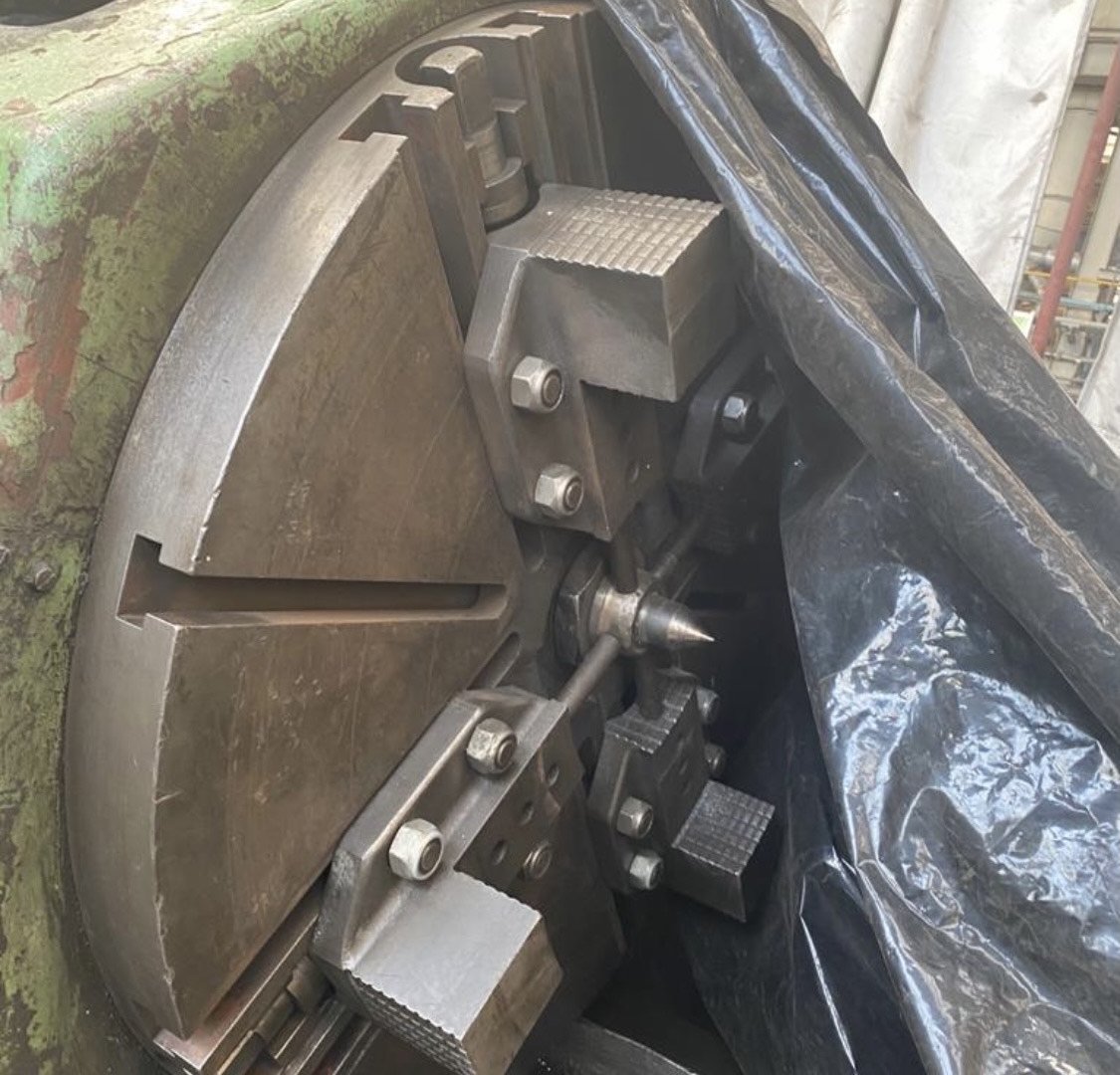

4-Jaw chuck 1000mm dia
Main motor 40 kw, 1460 rpm
Motor for drive of clamping unit 1.4 kw, 925 rpm
Motor for rapid traverse of carriage 1.3 kw, 2800 rpm
Motor for travel of tailstock 1.1 kw, 1400 rpm
Motor for drive of lubricating oil pump of headstock 0.2 kw, 1370 rpm
Motor for drive of lubricating oil pump of feed box 0.067 kw, 1400 rpm

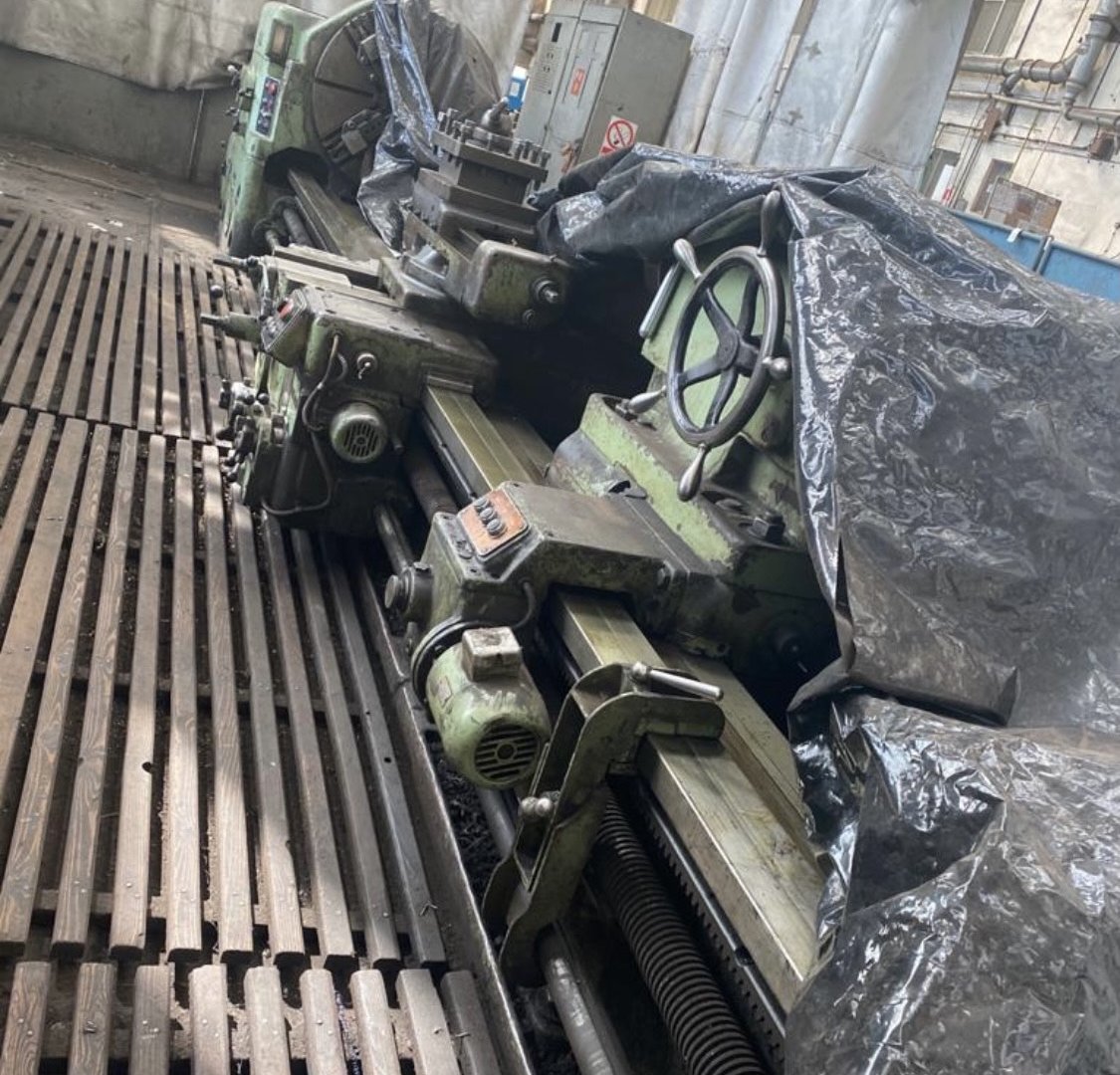

2 x carriages
2 x 3-point steadies

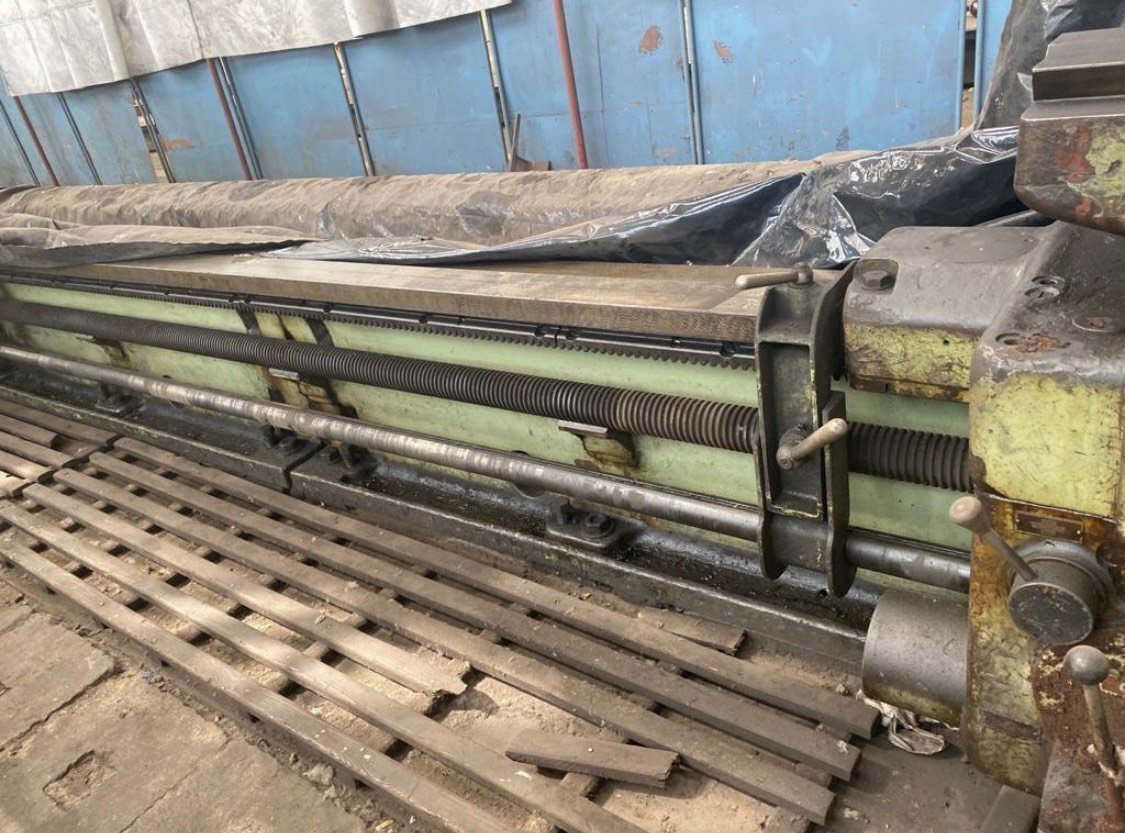

Full length screw cutting
