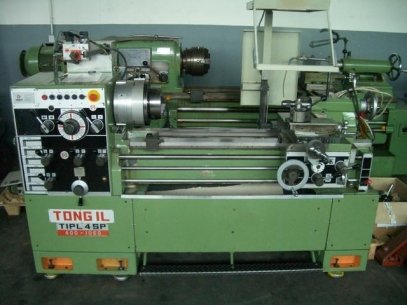

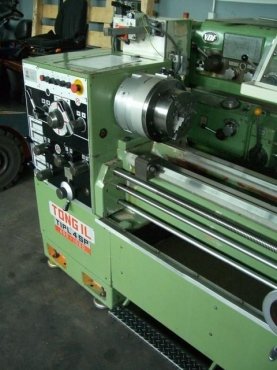

Distance between centers: 1060 mm Height: 200 mm turning diameter over bed: 400mm Swing over cross slide: 210 mm Drehmeisselqürschnitt: 20 x 20 mm spindle taper Camlock D 1-6 taper of spindle bore: MT-6 taper of the spindle sleeve: MK-4 Diameter of spindle bore 58 mm spindle diameter in front bearing 95 mm Number of spindle speeds: 16 Spindle speed range: 55-1600 U min /. Tool slide length: 445 mm tool carriage bridge width: 256 mm travel cross slide: 250 mm travel of top slide: 130 mm Tailstock Quill diameter: 55 mm taper seat: MK-4 adjustment barrel: 150 mm Number of feeds: 32 feed tool slide: 0.039 0.541 mm / rev feed slide: 0.019 0.271 mm / rev motor main drive: 3.2 kW Weight: 1.45 tons footprint approx: 2305 x 865 mm Accessories: Pneumatic chuck 200 Multifix Size B coolant pump tailstock documentation
