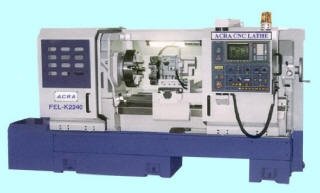

The ACRA FEL-K22 & FEL-26 "King" Turn Lathes Are Heavy Duty Flat Bed CNC Machines, And Builder Is ISO 9002 Certified. The One Piece Base Is Meehanite, Heavily Ribbed Double Wall With Integral Box Ways That Are Induction Hardened And Ground. The High Precision Ballscrews Are Driven By AC Digital Servo Motors.
The Spindles Are Available 3" Or 4", Supported By Three C-7 Angular Contact Bearings, And Driven By A 2-Speed Gearbox With World Class Quality Alloy Steel Precision Ground Gears. A Re-Circulating Oil Chiller Unit Keeps the headstock Temperature Constant, Further Insuring Excellent Accuracies. These machines Are Available With A Wide Array Of Options For A Variety Of manufacturing Needs. FANUC Control System And AC Digital Drives Are Standard, But Other Control Systems Can Be Specified.
Specifications:
FELK2240 FEL K 22X40 King CNC Lathe 10,404 LBS
FELK2280 FEL K 22X80 King CNC Lathe 15,480 LBS
FELK22120 FEL K 22X120 King CNC Lathe 17,710 LBS
FELK2640 FEL K 26X40 King CNC Lathe 11,005 LBS
FELK2680 FEL K 26X80 King CNC Lathe 16,080 LBS
FELK26120 FEL K 26X120 King CNC Lathe 18,310 LBS
