Installed new in: 2009
CNC Control: Fanuc 31I
Horsepower for each Spindle: 7.5 HP
Horsepower for Live Tooling: 3 HP
Chuck" 6" Chuck
Bar Capacity: 1.5"
RPM Range (Left spindle): 60 - 6,000 RPM
RPM Range (Right spindle): 60 - 6,000 RPM
Milling Speed of Axial Tools: 5,000 RPM
Milling Speed of Radial Tools" 10,000 RPM
Maximum Turning Length: 5.80"
Maximum Turning Diameter: 6.69"

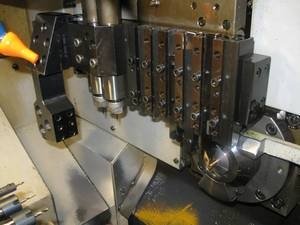

Tool Changer Capacity: (2) 8 Station Turrets
Tool Shank Size: 750" Square
C Axis on both Spindles: .001 Degree
Live Tooling Stations: All Stations
Way Construction: Linear Ways
Dimensions (approx.): 64" x 49" x 59"
Weight (approx.): 5,750 lbs
Equipped With (must be verified by buyer):

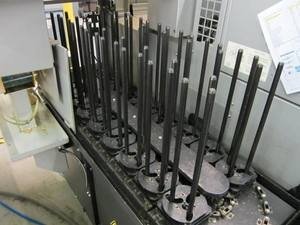

Gantry Loader Stocker Capacity16 Pallets
Nominal Workpiece Size for Loader (diameter x length)3" x 3.5"
Nominal Workpiece Weight for Loader 3.3 lbs
High Pressure Coolant for each Spindle

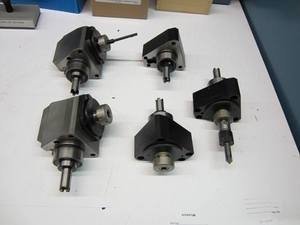

(5) Live Tool Holders

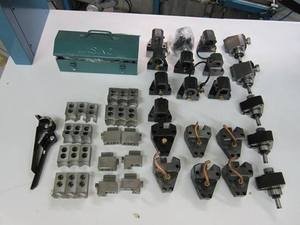

Misc OD & ID Tooling
Parts Unloader
Chip Conveyor
All Available Manuals
***** Only 2306 Cutting hours, Machine only cut Brass,
Factory Trained Technician Available for Start-Up,
Two Days Of Operator Training at your plant is Available
