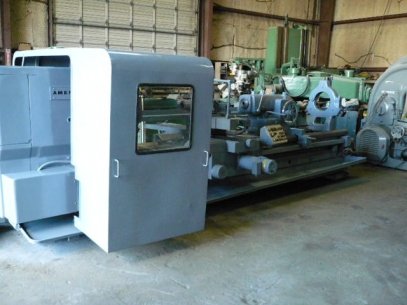

40" X 120" American CNC Lathe

Control: Machine to be retrofitted with a new Fagor
Control, new spindle drive, axis drives an motors,
main spindle drive motor reconditioned.

Swing Over Ways 40"
Swing Over Cross Slide 25"
Width Between Ways 22"
Center Distance 120"
Spindle Nose A - 20
Chuck Size 32" 4-Jaw
Spindle Thru Hole 12-1/2"
Spindle Speeds 8 To 600 Rpm's
Front Turret Horizontal 6 Position
Rapid Traverse 200 I.P.M.
Machine Main Motor 50 Hp.
Machine Weight 28,500 Lbs.
Tail Stock Quill Diameter 6"
Tail Stock Quill Travel 10"
Tail Stock Quill Taper # 5 Morse
Tail Stock Travel Manual
Steady Rest 12" Capacity
Machine Chip Pan & Coolant Yes
Hardened & Ground Ways Yes
Hardened & Ground Ball Screws Yes

Note: Machine Has Been Cleaned, Painted And
Cycled.

Condition Very Good
