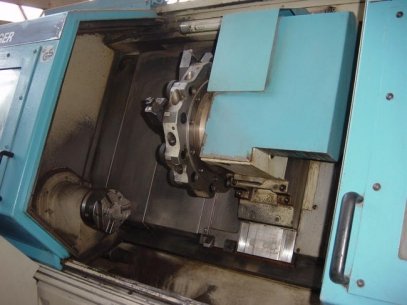

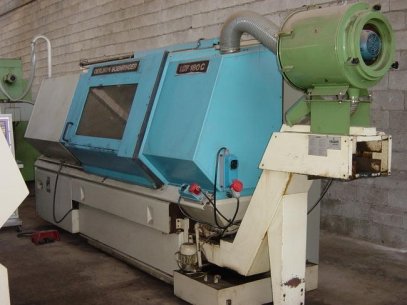

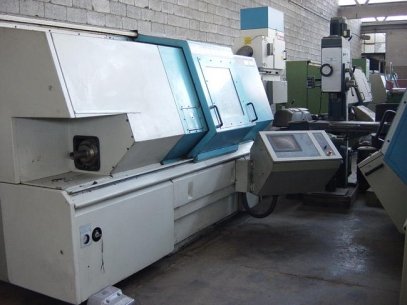

CNC Lathe
Make VDF-BOEHRINGER
Type C 180
Built in 1989
Control CNC
Specifications:
Technical Details
Turning diameter: 250 mm
Turning length: 1000 mm
Bar diameter max: 52 mm
Control PHILIPS B2T
Feeds stepless: 0-10000 mm/min
Rapid traverse: 10000 mm / min
Spindle turning speed - stepless: 230 - 5000 g/min
Tool taper VDI 40

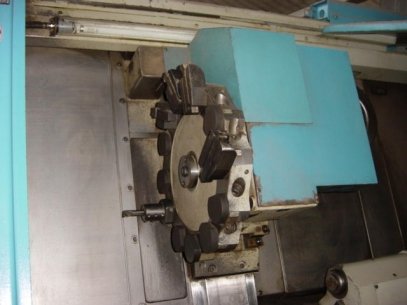

Number of tools 12 pc
Drive power: 25 kW
Weight: 7500 kg
Size:
Length 4985 mm
Width 2062 mm
Height 2200 mm
Additional information:
CNC PHILIPS B2T

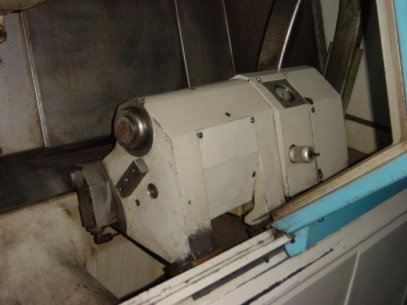

tailstock
various tools
