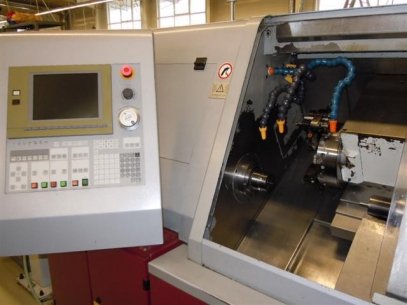

with Mitsubishi Meldas 635L3 control
bar diameter : max 32mm
travel x- axis : 130 mm
travel z1: 200 mm
travel z2 : 400 mm
tool turret : 12 stations
number of driven tools : 12
driven tools drive power : 1 KW
driven tools max. speed : 4000 1/min
driven tools torque : 3,2 Nm
feed lengthways and across : max. 8000 1/min
main spindle driving power : 3,5 / 5,5 KW
counter spindle speed : max. 6000 1/min
counter spindle drive power : 1,1 / 2,2 KW
connected load : 9 kVA
spindle motor : 3,7 / 5,5 kW
spindle speed : 8.000 U / min
weight : ca. 2.000 kg
machine ground : 1.160 x 2.110 x 1. 600

-
