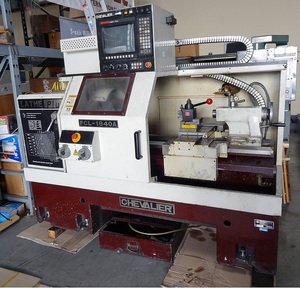

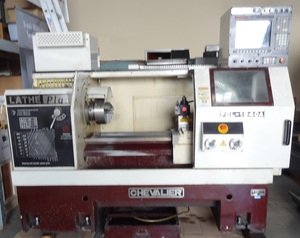

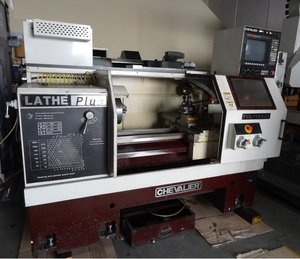

2001 CHEVALIER FLAT BED CNC LATHE WITH ANILUM 4200-PLUS CONVERSATIONAL CONTROL.
The machine can be used as regular CNC Lathe or Teaching type Lathe operation and also Manual lathe operation.
COME WTIH 10" CHUCK, TAIL STOCK, QC TOOL POST, STEADY REST AND
FLOOD COOLANT. Good condition.
Specifications:
SPECIFICATIONS
Swing Over Bed Ways 18.0"
Swing Over Cross Slide 10.0”
Distance Between Centers 40.0”
Spindle Bore 2.25”
Spindle Nose D1-6
Spindle Horsepower 7.5/10 Hp
Spindle Speed (Constant Surface Speed) 40 – 2,800 RPM with 3 range gear
Rapid Traverse Feed Rate 400 IPM

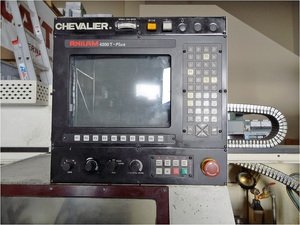

Control Anilam 4200T-PLUS conversational & Teaching type
Voltage 230/3/60
Machine Weight 6,300 lbs.
Floor space 45” x 88” x 75”
