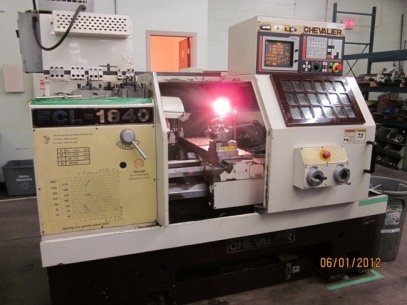

2001 Chevalier Model FCL-1840F CNC Lathe with FAGOR Control

Chevalier FCL-1840F CNC Lathe
SPECIFICATIONS:
Chuck Size 8"
Max Diameter Bar Capacity 1.75"
Max Swing Over Bed / Carriage 18.1"
Max Turning Diameter 18.1"
Max Machining Length 39.4"
Spindle Speed 33 - 3100 RPM
Spindle Bore 2.2"
Spindle Nose D1-6
Spindle Motor 10 HP
Rapid Traverse Rates (X / Z) 200 / 315 IPM
X-Axis Travel 11"
Z-Axis Travel 35.4"
Tailstock Taper MT#5
Machine Dimensions (L x W x H) 106" x 77" x 80"
Machine Weight 6380 lbs.


EQUIPPED WITH:
FAGOR CNC CONTROL
9" Monochrome CRT
CNC, Manual and Teach Modes
8" Manual 3-Jaw Chuck
Quick-Change Single Tool Post
