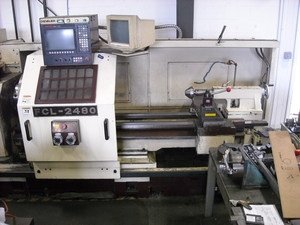

Manual, Teach and CNC Modes, Manual / Electronic Handwheels, Constant Surface Speed, 12" Manual 6-Jaw Buck Chuck, (2) Manual Stead Rests, Dorian Quick Change Single Tool Post, Manual Tailstock, AC Servo Motors, Hardened and Ground Bedways and Ballscrews
Specifications:
Chuck Size 12"
Max Diameter Bar Capacity 2.5"
Max Swing Over Bed / Carriage 24" / 14.5"
Distance Between Centers 80"
Spindle Speed 40 - 1800 RPM
Spindle Bore 3.15"
Spindle Nose D1-8
Spindle Motor 20 HP
Tailstock Taper MT#5
Tailstock Quill Travel 6"
Tailstock Quill Diameter 3"
Machine Dimensions (L x W x H) 140" x 72" x 86"
Machine Weight 10,000 lbs.
FEATURES:
ANILAM 1200T PLUS CNC CONTROL
Manual, Teach and CNC Modes
Manual / Electronic Handwheels
Constant Surface Speed
12" Manual 6-Jaw Buck Chuck
(2) Manual Steady Rests
Dorian Quick Change Single Tool Post
Manual Tailstock
AC Servo Motors
Hardened and Ground Bedways and Ballscrews
