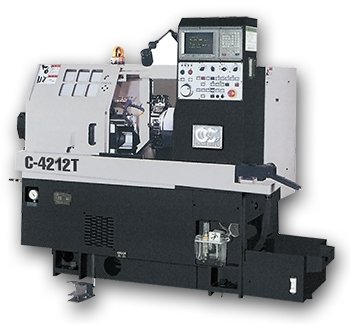

C-4212T.(S) / C-5212T.(S)

Max. manu. dia. Ø160
Max. manu. Length 280
Swing over bed slide Ø420
X-axis travel 120
Z-axis travel 350
Bore of spindle Ø56(Option Ø61)
Max. bar feeding dia. Ø42(Option Ø51)
Spindle nose A2-5
Taper of spindle bore MT#6
Collet of spindle 42#(52#)
Hydraulic chuck 6" Hyd. chuck
Spindle motor AC 5.5/7.5 kw
Spindle speed range 50-4000 rpm (Option 6000 rpm)
X-axis rapid travel speed 12 m/min
Z-axis rapid travel speed 18 m/min
Min. input unit 0.001
Cutting tool size □20
Max. bore size of tool Ø25
Tool position (Q'ty) 12 pcs
Coolant pump 1/4 HP
Pump capacity 3-6 cc/10 min
Machine size (LxWxH) 2100x1280x1650
N.W. 2200 kgs
