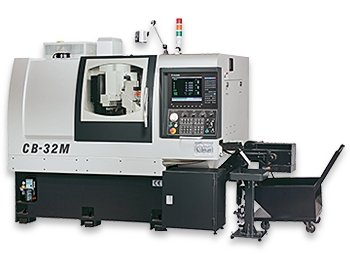

CB-32M / CB-36M

Max. manu. dia. Ø32 Ø36
Spindle max. rpm 4000 rpm (Option 6000 rpm)
X-axis travel (vertical) 185
Y-axis travel (longitudinal) 490
Z-axis travel (cross) 165
Max. bar feeding dia. Ø32 Ø36
Collet of spindle TRB-32 TRB-36
X rapid travel speed 30 m/min
Y,Z rapid travel speed 30 m/min
Min. input unit 0.001
No. of O.D. turning tool 6 (Option 5)
O.D. turning tool size 12 (Option 16)
No. of I.D. turning tool 5
I.D. turning tool size Ø25
Spindle servo motor 5.0 kw (Option 7.0 kw)
X-axis servo motor 1.5 kw
Y, Z-axis servo motor 1.0 kw
Center height 965
Sub Spindle
Sub spindle bore Ø28
Max. manu. dia. Ø32
Sub spindle max. rpm 4000 rpm (Option 6000 rpm)
X-axis travel 293
Z-axis travel 295
Collet of spindle TRB-32
X, Z-axis rapid travel speed 30 m/min
Min. input unit 0.001
No. of turning tool 4
I.D. turning tool size Ø25
Sub spindle servo motor 3.5 kw
X, Z-axis servo motor 1.0 kw
