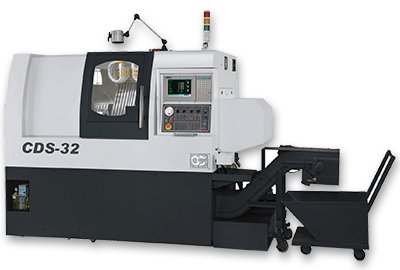

CDS-32

Max. manu. dia. Ø32 Max. manu. dia. Ø32
Spindle max. rpm 6000 rpm Sub spindle max. rpm 6000 rpm
X-axis travel(vertical) 330 X-axis travel(vertical) 330
Z-axis travel(cross) 270 Z-axis travel(cross) 270
Max. bar feeding dia. Ø32 Max. bar feeding dia. Ø32
Collet of spindle TRB-32 Collet of spindle TRB-32
X rapid travel speed 30 m/min X rapid travel speed 30 m/min
Z rapid travel speed 30 m/min Z rapid travel speed 30 m/min
Min. input unit 0.001 Min. input unit 0.001
O.D. turning tool size 16 O.D. turning tool size 16
I.D. turning tool size Ø20 I.D. turning tool size Ø20
Spindle servo motor 5.5/7.5kw Sub spindle servo motor 5.5/7.5kw
X-axis servo motor 1.0 kw X-axis servo motor 1.0 kw
Z-axis servo motor 1.0 kw Z-axis servo motor 1.0 kw
Center height 1070 Center height 1070
Coolant pump 3/4 HP Coolant pump 3/4 HP
