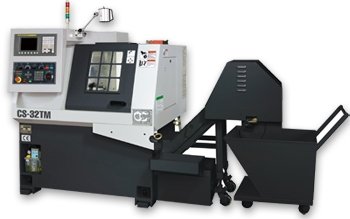

CS-32T.(M)/36T.(M)

Max. manu. dia. Ø120
Max. spindle speed range 4000 rpm (Option 6000 rpm)
X-axis travel 250
Z-axis travel 165
Max. bar feeding dia. Ø32 Ø36
Collet of spindle TRB-32 TRB-36
X,Z-axis rapid travel speed 18 m/min
No. of external turning tools 8
O.D. turning tool size 20
No. of internal turning tools 4
I.D. turning tool size Ø25
Controller Mitsubishi E60
FANUC Oi-Mate TD SYNTEC
900T
Min. input unit 0.001
Live tooling size - ER25(ER20)
Live tooling servo motor - 0.75kw (1.5kw)
Live tooling max. rpm - 4000(6000) rpm
Spindle servo motor 3.7kw 3.5kw (Option 5.0kw)
X, Z axis servo motor Mitsubishi 1kw
FANUC 0.75kw 0.5kw
Coolant pump 1/4 HP
Auto lubricator capacity 3-6 cc/15 min
Center height 965
Machine size (LxWxH) 1950x1450x1600
N.W. 1800 kgs
