SPECIFICATIONS:
Max diameter turned 9.84" (250mm)
Max swing over bed 20.87" (530mm)
Turret slide travel (X-axis) 8.46" (215mm)
Saddle travel (Z-axis) 16.54" (420mm)
Spindle nose type A2-6"
Spindle bore 2.01" (51mm)
Tool capacity 12
Index time per station 0.5 seconds
Rapid traverse X / Z 960 / 640 ipm
Spindle motor (cont/duty) 15 / 20 HP
Electrics 220/440/3/60 HZ
Spindle speed range 40-4500 RPM
Tailstock taper #5MT
Gross weight 6,600 LBS (3000 kgs)
Machine dimensions (L x W x H) 109" X 55" X 80"
EQUIPPED WITH:

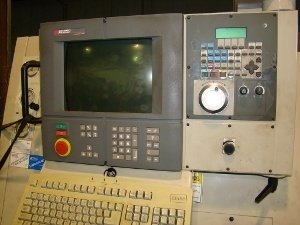

Acramatic 2100 control with color monitor, RS232 port,
8" SWM hydraulic chuck, Hydraulic tailstock, 3-1/2" floppy drive
Coolant system, Tool holders with tooling
