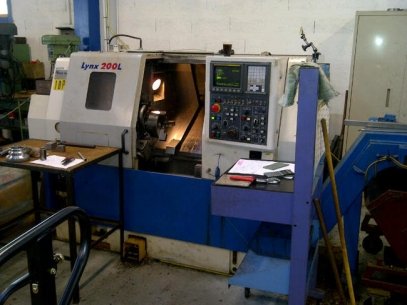

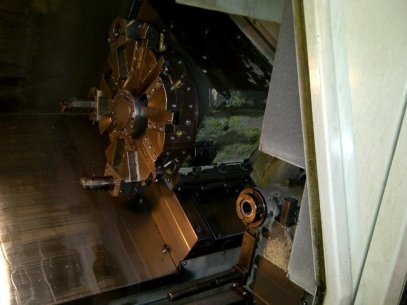

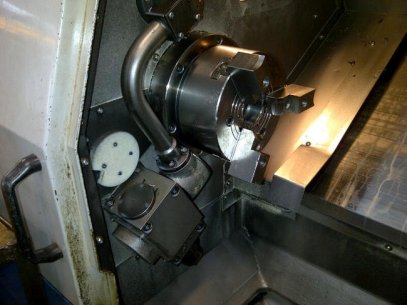

Stock No 1105-01479 Type of machine CNC Lathe DOOSAN DAEWOO type LYNX 200L built in 2000 Type of control CNC Fanuc 21-T location FRANCE origin KORREA Delivery time immediately Freight basis ex location Technical details turning diameter 460 mm turning length 330 mm control Fanuc 21-T swing over bed 460 mm turning diameter over the cross slide 280 mm travel - x 160 mm travel - z 330 mm turning length 335 mm Feed: Rapid traverse X-axis 12 m / min rapid traverse Z-axis 15 m / min main spindle speed range - spindle 42-4000 rev / min spindle nose A2-6 spindle bore 51 mm spindle bore 65 mm spindle taper 1/20 Drive power - 7.5 kW main spindle tool upper turret places 10th Shaft diameter 32 (approximately) 20 mm shaft diameter (square) mm tube diameter max. 50 mm chuck diameter 210 mm Tailstock quill diameter 65 mm quill 80mm Taper MT 4 coolant tank 87 l total power requirement 15 kW Machine weight 3,2 t dimensions of approximately 1.9 x 1.5 x 1.5 m Accessories Chip conveyor Coolant system feed supplement information CNC - DAEWOO LYNX 200L Lathe BJ 2000 FANUC 21 T
